Description
CP9361 - Air Scribe
This tool is extremely lightweight and easy to use. An adjustment dial on the top of the Chicago Pneumatic CP9361 permits you to select the appropriate power level for your application. Air consumption is extremely low at 1 cfm, and that means your compressor won't be struggling to keep up. Simply connect a compressed air source to this tool via the 8 foot filtered air hose that is included and you are ready to work. An in-line lubricator is recommended to keep your tool working flawlessly and reduce servicing requirement.

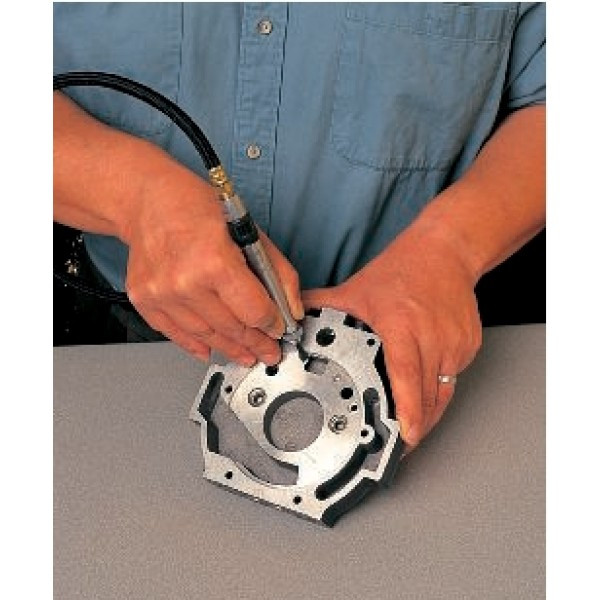

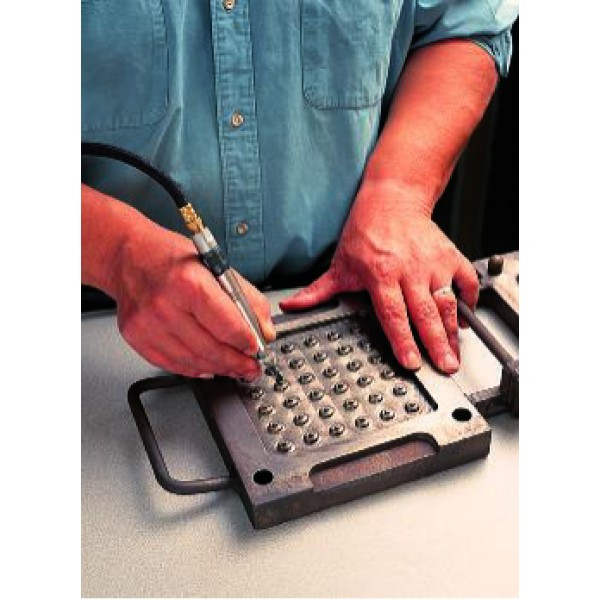

For engraving, simply use the CP9361 air scribe as it is supplied. The ball point carbide stylus will write on numerous surfaces with the ease of a ball point pen. Works great on metal, wood, plastic, glass, stone, and more. This configuration is great for marking tools, parts, and more. The CP9361 will write on materials up to 64 Rc hardness.

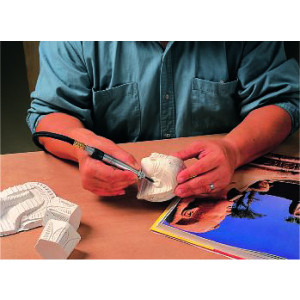

To use the CP9361 air scribe as an air chisel, simply swap the ball point carbide stylus with the optional chisel tip. The chisel tip makes this tool an excellent chipper for jobs requiring precision. Fossil preparation and dental mold making are two very popular uses for the CP9361 with it's chisel tip installed. Manufacturer's part number T012644 for the scribe; part number T011970 for the scribe kit.
Benefits
- Long lasting due to Premium quality components
- Easy handling and Comfortable use
- Adjustable power for a variety of applications and materials such as: metals, plastics, ceramics, and glass
- Convertible into a light scaler
Features
- Highest durability in the market
- Hose 8ft (2.4 m) length with air filter
- Convertible to a hammer or a light scaler
- Lightweight for easy operation
Available now at AirToolPro / Zampini Industrial 1-800-353-4676
| Part number | T012644 | |
| Model | CP9361 | |
| Blows per minute | 13500 | |
| Bore | - | - |
| Stroke | - | - |
| Chisel rivet set shank | 1/8" | 3 mm |
| Shank | Hexagonal | |
| Net weight | 0.31 lb | 0.14 kg |
| Length | 5" | 127 mm |
| Average air consumption | 0.28 cfm | 3/4 l/mn |
| Actual air consumption | 0.21 cfm | 6 l/mn |
| Air inlet thread size | 0.25 " | |
| Min. hose size | 3/16" | 5 mm |
| Sound dBa pressure | 79 dBa | |
| Sound Power | 90 dBa | |
| Vibration (ISO-8662-14) | 4.2 m/s² | |
| Vibration α (ISO-28927-9) | 5.1 m/s² | |
| Vibration K (ISO-28927-9) | 2.4 m/s² | |
Additional Part Numbers: G3934323, 11C991, 27112718, 1563809818, B003V4AZWU, 90000989, 015451008079, 7026783, 176668, 63805717
