Description
| Model | 116 |
| Shank Opening | Round |
| Blows per Minute | 3,500 |
| Bore Diameter in. (mm) | 0.69" (17.5) |
| Stroke Length in. (mm) | 2.63" (67) |
| Tool Weight lbs (kg) | 3.4 (1.54) |
| Overall Length in. (mm) | 7.8" (198) |
| Average Air Consumption cfm (L/min) | 3 (85) |
| Air Consumption @ Load cfm (L/min) | 15 (425) |
| Vibration m/s2 | 14.8, uncertainty: 2.2 |
| Sound Pressure/Power dBA | 104.4 / 117.4 |
| Air Inlet NPTF in. | 1/4" |
| Min. Hose Size in. (mm) | 3/8" (10) |
| Chisel Shank Diameter in. (mm) | 0.401" (10.2) |

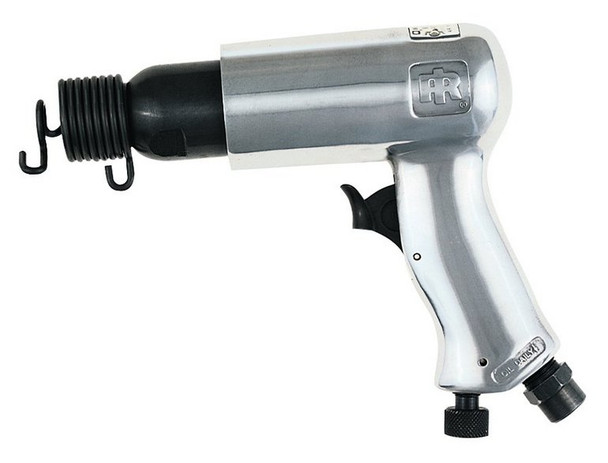

Standard Duty Air Hammer The economical air hammer for fast cutting action, especially for medium exhaust system, panel cutting, and general repair work. 116K Air Hammer Kit Combine the 116 Air Hammer into the convenience of a kit. Kit includes 116 Air Hammer and five (5) assorted chisels. Assorted chisels include (1) punch chisel, (1) edging tool, (1) tail pipe cutter, (1) 3/4" wide blade straight chisel, (1) cutting chisel.
- Up to 3,500 blows per minute
- Alloyed steel barrel and heat-treated piston for longer life
- Built-in power regulator and trigger control
For more information on the Ingersoll Rand 116 please call AirToolPro / Zampini Industrial Group at 1-800-353-4676
CCN Number 1216183
