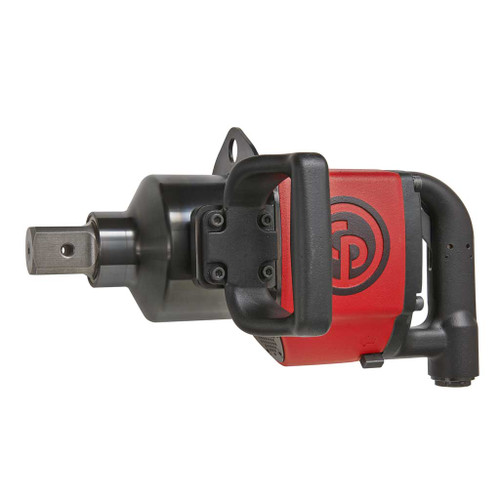

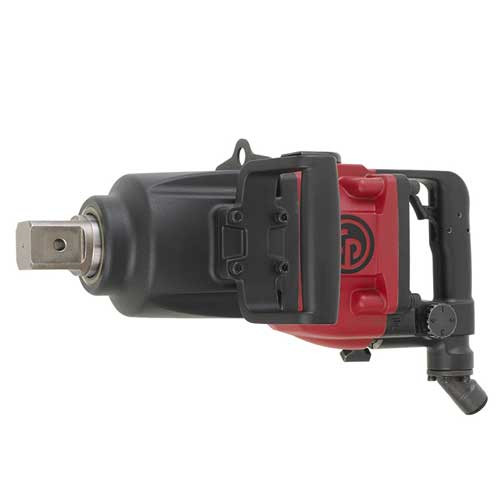

Chicago Pneumatic CP6135-D80 1 1/2" Impact Wrench | 2875 Ft Lbs | AirToolPro

Hover over image to zoom

  • Chicago Pneumatic CP6135-D80 1 1/2" Impact Wrench | 2875 Ft Lbs | AirToolPro
  • CP6135-D80 Impact Wrench by CP Chicago Pneumatic - 6151590380 image at AirToolPro.com
  • CP6135-D80 Impact Wrench by CP Chicago Pneumatic - 6151590380 available now at AirToolPro.com
  • CP6135-D80 Impact Wrench by CP Chicago Pneumatic - 6151590380
  • Image 5
SKU:
6151590380
MSRP: $6,800.00
Your Limited Time Web Price:
$5,467.20
(You save $1,332.80)
Shipping:
Flat Rate Per Order $11.95 in USA
Weight:
35.30 LBS

Product Description

CP6135-D80 - The best Power to Weight ratio for super industrial applications

Benefits

  • Monster Power for the light weight and compact size
  • Premium quality for the most demanding applications
  • Smooth operation thanks to the teasing trigger
  • Features

  • Durable Pinless Rocking Dog clutch
  • Robust aluminum body & Steel clutch housing
  • Reversible and teasing steel trigger


  • Available now at AirToolPro / Zampini Industrial 1-800-353-4676

    Part number6151590380
    ModelCP6135-D80
    Handle typeD-Handle Inside Trigger
    Square drive1 1/2"
    Working Torque Range (fwd)1,000-5,500 Nm740-4,055
    Working Torque Range (fwd)740-4,055 ft.lbs1,000-5,500
    Maximum Torque (reverse)8000 Nm5900 ft.lbs
    Maximum Torque (reverse)5900 ft.lbs8000 Nm
    Free speed2800 rpm
    Blows per minute750
    Net weight35,3 16
    Net weight16 kg35,3 lb
    Power/weight ratio500 Nm/kg167.1388101983 ft.lb/lb
    Power/weight ratio167.1388101983 ft.lb/lb500 Nm/kg
    Length16"408 mm
    Length408 mm16"
    Side to center67.5 mm2.65"
    Side to center2.65"67.5 mm
    Actual air consumption84.5 cfm
    Actual air consumption40 l/s84.5 cfm
    Air inlet thread size0.5 "
    Min. hose size19 mm5/8"
    Min. hose size5/8"19 mm
    Noise level98 dBa
    Sound Power109 dBa
    Vibration α (ISO-28927-2)13.6 m/s²
    Vibration K (ISO-28927-2)2.2 m/s²
    Socket retainerHole
    Clutch typePinless Rocking Dog
    Bolt sizeM48 1-7/8"
    Bolt size1-7/8"M48
    Box dimensions220 x 460 x 280 8,7 x 18,1 x 11,0
    Box dimensions8,7 x 18,1 x 11,0220 x 460 x 280


    Please Call Us For Your Best Price
