Chicago Pneumatic CP7779 1" Impact Wrench | 1080 Ft Lbs | AirToolPro

Write a Review
SKU:
8941077790
Weight:
7.70 LBS
Shipping:
Calculated at Checkout

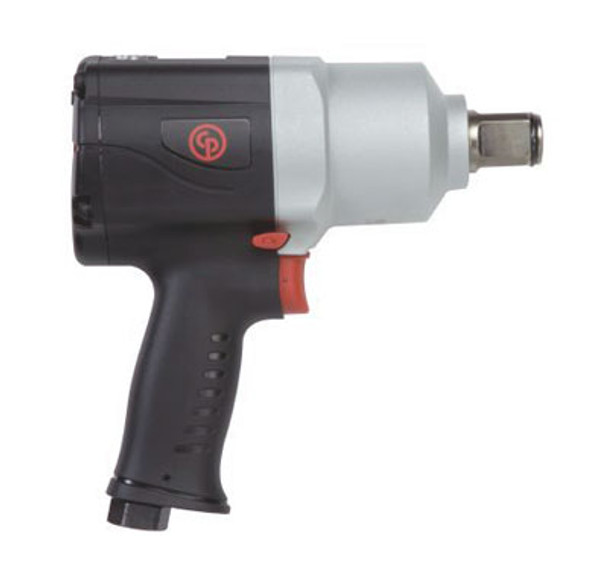

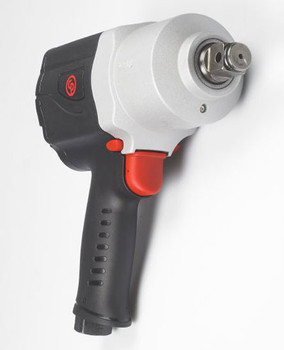

  • CP7779 Impact Wrench by CP Chicago Pneumatic - 8941077790 available now at AirToolPro.com
  • CP7779 Impact Wrench by CP Chicago Pneumatic - 8941077790 image at AirToolPro.com
  • CP7779 Impact Wrench by CP Chicago Pneumatic - 8941077790 available now at AirToolPro.com
  • CP7779 Impact Wrench by CP Chicago Pneumatic - 8941077790 image at AirToolPro.com
$581.29

Description

CP7779 - Powerful, Lightweight & Compact

Benefits

  • Powerful impact for General Maintenance
  • Maximize operator comfort: lightweight and balanced design
  • Energy savings: low air consumption
  • Features

  • 1" composite impact wrench with dual retainer (hole + ring)
  • 1,440 ft.lbs (1,950Nm) of maximum torque in reverse
  • Low consumption air motor at 31 cfm (14.7 l/s)
  • Insulating and lightweight composite handle
  • S2S easy forward reverse
  • Full teasing developed trigger


  • Available now at AirToolPro / Zampini Industrial 1-800-353-4676

    Part number8941077790
    ModelCP7779
    Over carton260*260*480 10.2*10.2*18.9
    Over carton10.2*10.2*18.9260*260*480
    Handle typePistol
    Square drive1"
    Working Torque Range (fwd)407-1,464 Nm300-1,080
    Working Torque Range (fwd)300-1,080 ft.lbs407-1,464
    Maximum Torque (reverse)1950 Nm1440 ft.lbs
    Maximum Torque (reverse)1440 ft.lbs1950 Nm
    Free speed7000 rpm
    Blows per minute1200
    Net weight7.7 lb3.5 kg
    Net weight3.5 kg7.7 lb
    Power/weight ratio557.142857142857 Nm/kg187.012987012987 ft.lb/lb
    Power/weight ratio187.012987012987 ft.lb/lb557.142857142857 Nm/kg
    Length8.7"221 mm
    Length221 mm8.7"
    Side to center39 mm1.53"
    Side to center1.53"39 mm
    Average air consumption7.75 cfm
    Average air consumption3.7 l/s7.75 cfm
    Actual air consumption31 cfm
    Actual air consumption14.7 l/s31 cfm
    Air inlet thread size0.375 "
    Min. hose size13 mm1/2"
    Min. hose size1/2"13 mm
    Noise level97 dBa
    Sound Power108 dBa
    Vibration α (ISO-28927-2)12.6 m/s²
    Vibration K (ISO-28927-2)3.4 m/s²
    Socket retainerDual
    Clutch typeTwin hammer
    Box dimensions253*253*117 10*10*4.6
    Box dimensions10*10*4.6253*253*117


    Please Call Us For Your Best Price
