Chicago Pneumatic CP7782-6 1" Impact Wrench | 1475 Ft Lbs | AirToolPro

Hover over image to zoom

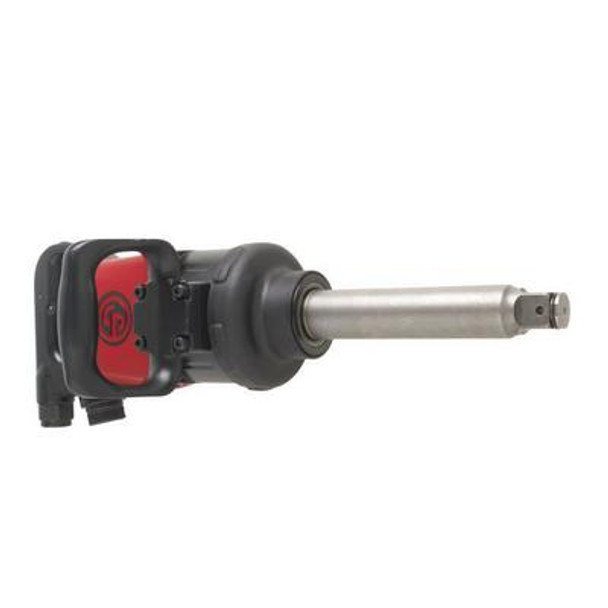

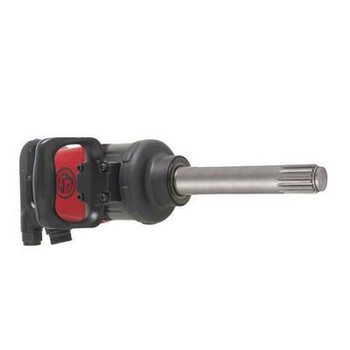

  • CP7782-6 Impact Wrench by CP Chicago Pneumatic - 8941077826
  • CP7782-6 Impact Wrench by CP Chicago Pneumatic - 8941077826 available now at AirToolPro.com
  • CP7782-6 Impact Wrench by CP Chicago Pneumatic - 8941077826 image at AirToolPro.com
  • Image 4

Manufacturer:
Chicago Pneumatic

SKU:
8941077826
Your Limited Time Web Price:
$585.11
Shipping:
Flat Rate Per Order $11.95 in USA

Product Description

CP7782-6 - High Torque & Comfort

Benefits

  • High efficiency motor, yet economical with durable reinforced clutch mechanism
  • Durable impact wrench with great power for the toughest jobs on heavy vehicles
  • Features

  • 1" straight impact wrench with 6" extended anvil
  • 1920 ft.lbs - 2600 Nm of maximum torque in reverse
  • Pinless closed reinforced rocking dog impact mechanism
  • Socket retainer ring combined with hole retainer
  • Ergonomic side handle
  • Full teasing trigger
  • Regulator with integrated forward/reverse with 3-position power settings in both directions


  • Available now at AirToolPro / Zampini Industrial 1-800-353-4676

    Part number8941077826
    ModelCP7782-6
    Over carton670*245*130 26,35*9,6*5,11
    Over carton26,35*9,6*5,11670*245*130
    Handle typeD-Handle Inside Trigger
    Square drive1"
    Working Torque Range (fwd)500 - 2000 Nm370 - 1475
    Working Torque Range (fwd)370 - 1475 ft.lbs500 - 2000
    Maximum Torque (reverse)2600 Nm1920 ft.lbs
    Maximum Torque (reverse)1920 ft.lbs2600 Nm
    Free speed5200 rpm
    Blows per minute500
    Net weight25.55 lb11.6 kg
    Net weight11.6 kg25.55 lb
    Power/weight ratio224.137931034483 Nm/kg75.146771037182 ft.lb/lb
    Power/weight ratio75.146771037182 ft.lb/lb224.137931034483 Nm/kg
    Length20.4"520 mm
    Length520 mm20.4"
    Average air consumption10 cfm
    Average air consumption4.8 l/s10 cfm
    Actual air consumption40.7 cfm
    Actual air consumption19.2 l/s40.7 cfm
    Air inlet thread size0.5 "
    Min. hose size13 mm1/2"
    Min. hose size1/2"13 mm
    Noise level100 dBa
    Sound Power111 dBa
    Vibration α (ISO-28927-2)7.8 m/s²
    Vibration K (ISO-28927-2)1.8 m/s²
    Socket retainerDual
    Clutch typePin less closed rocking dog
    Bolt sizeM32
    Box dimensions670*245*130 26,35*9,6*5,11
    Box dimensions26,35*9,6*5,11670*245*130


    Please Call Us For Your Best Price
