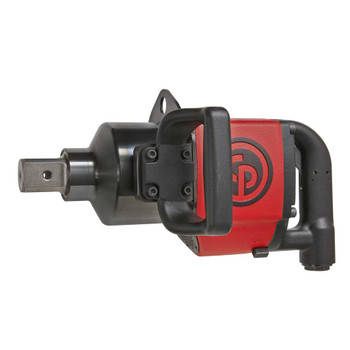

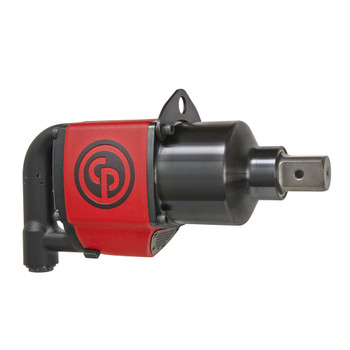

CP6135-D80 Air Impact Wrench | 1 1/2" | 5900 ft.lbs | 6151590380  | by Chicago Pneumatic

Write a Review
SKU:
6151590380
Weight:
0.00 LBS
Shipping:
Calculated at Checkout
  • CP6135-D80 Air Impact Wrench | 1 1/2" | 5900 ft.lbs | 6151590380  | by Chicago Pneumatic
  • CP6135-D80 Air Impact Wrench | 1 1/2" | 5900 ft.lbs | 6151590380  | by Chicago Pneumatic
  • CP6135-D80 Air Impact Wrench | 1 1/2" | 5900 ft.lbs | 6151590380  | by Chicago Pneumatic
  • CP6135-D80 Air Impact Wrench | 1 1/2" | 5900 ft.lbs | 6151590380  | by Chicago Pneumatic
  • CP6135-D80 Air Impact Wrench | 1 1/2" | 5900 ft.lbs | 6151590380  | by Chicago Pneumatic
  • CP6135-D80 Air Impact Wrench | 1 1/2" | 5900 ft.lbs | 6151590380  | by Chicago Pneumatic
  • CP6135-D80 Air Impact Wrench | 1 1/2" | 5900 ft.lbs | 6151590380  | by Chicago Pneumatic
  • CP6135-D80 Air Impact Wrench | 1 1/2" | 5900 ft.lbs | 6151590380  | by Chicago Pneumatic
  • CP6135-D80 Air Impact Wrench | 1 1/2" | 5900 ft.lbs | 6151590380  | by Chicago Pneumatic
  • CP6135-D80 Air Impact Wrench | 1 1/2" | 5900 ft.lbs | 6151590380  | by Chicago Pneumatic
  • CP6135-D80 Air Impact Wrench | 1 1/2" | 5900 ft.lbs | 6151590380  | by Chicago Pneumatic
  • CP6135-D80 Air Impact Wrench | 1 1/2" | 5900 ft.lbs | 6151590380  | by Chicago Pneumatic
  • CP6135-D80 Air Impact Wrench | 1 1/2" | 5900 ft.lbs | 6151590380  | by Chicago Pneumatic
  • CP6135-D80 Air Impact Wrench | 1 1/2" | 5900 ft.lbs | 6151590380  | by Chicago Pneumatic
$0.00

Description

CP6135-D80 - The best Power to Weight ratio for super industrial applications

Part number6151590380
ModelCP6135-D80
Handle typeD-Handle Inside Trigger
Square drive1 1/2"
Working Torque Range (fwd)1,000-5,500 Nm740-4,055
Working Torque Range (fwd)740-4,055 ft.lbs1,000-5,500
Maximum Torque (reverse)8000 Nm5900 ft.lbs
Maximum Torque (reverse)5900 ft.lbs8000 Nm
Free speed2800 rpm
Blows per minute750
Net weight35,3 16
Net weight16 kg35,3 lb
Power/weight ratio500 Nm/kg167.1 ft.lb/lb
Power/weight ratio167.1 ft.lb/lb500 Nm/kg
Length16"408 mm
Length408 mm16"
Side to center67.5 mm2.65"
Side to center2.65"67.5 mm
Actual air consumption84.5 cfm
Actual air consumption40 l/s84.5 cfm
Air inlet thread size0.5 "
Min. hose size19 mm5/8"
Min. hose size5/8"19 mm
Noise level98 db(A)
Sound Power109 db(A)
Vibration α (ISO-28927-2)13.6 m/s²
Vibration K (ISO-28927-2)2.2 m/s²
Socket retainerHole
Clutch typePinless Rocking Dog
Bolt sizeM48 1-7/8"
Bolt size1-7/8"M48
Box dimensions220 x 460 x 280 8,7 x 18,1 x 11,0
Box dimensions8,7 x 18,1 x 11,0220 x 460 x 280


Benefits

  • Monster Power for the light weight and compact size
  • Premium quality for the most demanding applications
  • Smooth operation thanks to the teasing trigger
  • Features

  • Durable Pinless Rocking Dog clutch
  • Robust aluminum body and Steel clutch housing
  • Reversible and teasing steel trigger


  • For more information on the CP6135-D80 impact wrench please call Zampini Industrial Group at 1-800-353-4676 and we will be happy to assist you.
