Chicago Pneumatic CP7773 1" Impact Wrench | 950 Ft Lbs | AirToolPro

Hover over image to zoom

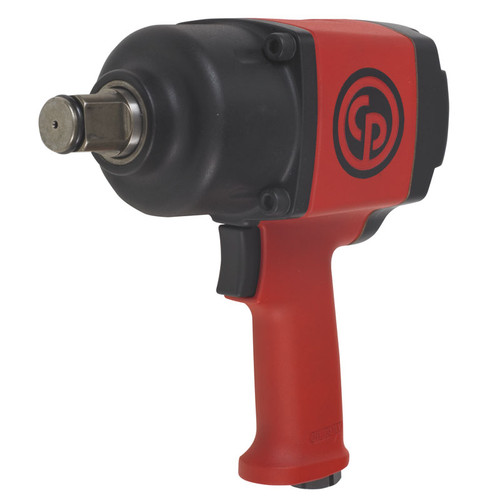

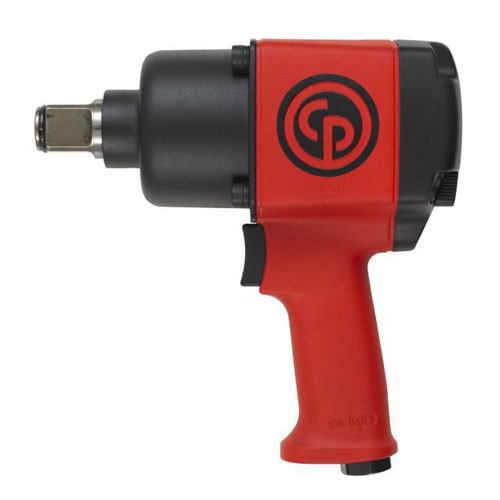

  • CP7773 Impact Wrench by CP Chicago Pneumatic - 8941077730
  • CP7773 Impact Wrench by CP Chicago Pneumatic - 8941077730 available now at AirToolPro.com
  • CP7773 Impact Wrench by CP Chicago Pneumatic - 8941077730 image at AirToolPro.com
  • Image 4
SKU:
8941077730
MSRP: $768.00
Your Limited Time Web Price:
$463.10
(You save $304.90)
Shipping:
Flat Rate Per Order $11.95 in USA
Weight:
12.05 LBS

Product Description

CP7773 - Compact & Powerful for General Maintenance

Benefits

  • Ideal for General Maintenance applications
  • Powerful motor and durable clutch
  • Operator comfort due to reduced noise level

Features

  • 1" pistol impact wrench with ring retainer
  • Twin hammer clutch
  • High power: 1200 ft.lbs (1627 Nm)
  • Compact size with only 12,1 lbs (5.25 kg)
  • Combined power regulator with forward/reverse


Available now at AirToolPro / Zampini Industrial 1-800-353-4676

Part number 8941077730
Model CP7773
Handle type Pistol
Square drive 1"
Working Torque Range (fwd) 136-1,288 Nm 100-950
Working Torque Range (fwd) 100-950 ft.lbs 136-1,288
Maximum Torque (reverse) 1630 Nm 1200 ft.lbs
Maximum Torque (reverse) 1200 ft.lbs 1630 Nm
Free speed 6300 rpm
Blows per minute 900
Net weight 12.05 lb 5 1/2 kg
Net weight 5.5 kg 12.05 lb
Power/weight ratio 296.363636363636 Nm/kg 99.5850622406639 ft.lb/lb
Power/weight ratio 99.5850622406639 ft.lb/lb 296.363636363636 Nm/kg
Length 9.2" 234 mm
Length 234 mm 9.2"
Side to center 45 mm 1.8"
Side to center 1.8" 45 mm
Average air consumption 7.5 cfm
Average air consumption 3.5 l/s 7.5 cfm
Actual air consumption 30 cfm
Actual air consumption 14.2 l/s 30 cfm
Air inlet thread size 0.375 "
Min. hose size 13 mm 1/2"
Min. hose size 1/2" 13 mm
Noise level 96 dBa
Sound Power 107 dBa
Vibration (ISO-8662-7) 9 m/s²
Vibration α (ISO-28927-2) 10.4 m/s²
Vibration K (ISO-28927-2) 4.2 m/s²
Socket retainer Friction ring
Clutch type Twin hammer


Please Call Us For Your Best Price
