Description

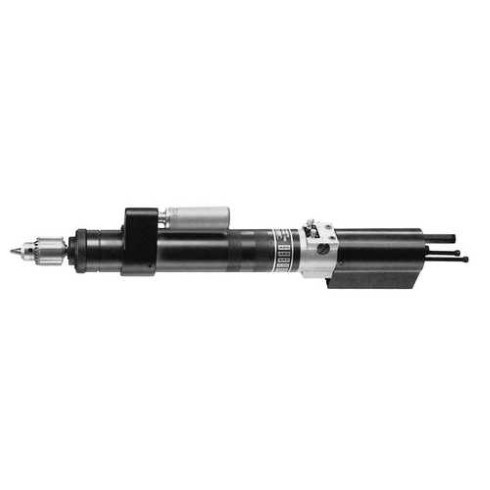

8265-3-1 Specifications
| Model | 8265-3-1 |
| Sound Level dB(A) | 77 |
| Air Consp. @ Working Speed ft^3/cycle (L/cycle) | 2.9 ( 82 ) |
| Nominal Drilling Capacities Wood, Med. or FRP | 11/16 (17.5) |
| Stroke Lengths | 1-1/2" (38 mm) |
| Thrust @ 90 PSI lb. (N) | 250 lbs. |
| Free Speed rpm | 350 |
| Nominal Drilling Capacities Stnls. Steel Type 304 | 5/16 (7.9) |
| Std. Chuck Capacity in. (mm) | 1/2" ( 12.7mm ) |
| Nominal Drilling Capacities Steel SAE 1213 | 1/2 (12.7) |
| Nominal Drilling Capacities Aluminum 2024-T4 | 5/8 (15.9) |
| Gear Reduction | Double |
1/2" (12.7 mm) Capacity, Steel .75 HP (.56 kW)
- Built-in four-way valve enables both namual and remote operation.
- Double-acting air piston provides smooth, controlled forward and retract strokes.
- Needle valve controls allows adjustment of forward and retract strokes.
- Adjustment screw provides infinite stroke length settings.
- Ball bearing spindle support offers precision and long service life.
- Muffled exhaust for a quieter work environment.
