Description

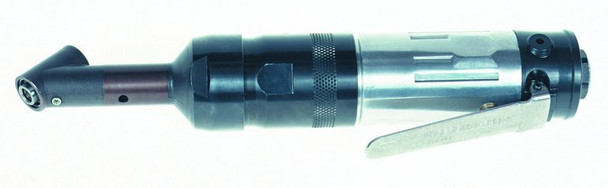

Proven Quality and ReliabilityThe popular 5 Series Angle Drills deliver results day after day. And excellent power-to-weight ratio gets the job done with less fatigue. Available with Aerospace Heads (A1 or B1models) or standard chucks.
Call Zampini Industrial Group Group at 1-800-353-4676 for more info.
A Genuine Ingersoll Rand product.
To view our complete selection of air and electric drills, click here to return to Drills and Tappers - Home.
View AllClose
- Stall Torque: 20 to 120 in.-lb. / 2.3 to 13.6 Nm
- Speeds: 700 to 4800 RPM
- Maximum TIR runout of .005? ensures precision holes for critical applications
- Infinitely variable speed allows slow speed starting and high speed drilling
- Angle head may be rotated 360 degree to allow ideal orientation with the throttle
- Ergonomically designed housing provides a secure surface for operator grip
- Modular design allows maximum parts interchangeability and easy, low coast maintenance
Call Zampini Industrial Group Group at 1-800-353-4676 for more info.
| Model | 5LK2A41 |
| Chuck Capacity in. | 1/4 |
| Free Speed rpm | 2000 |
| Stall Torque Nm | 5.1 |
| Stall Torque in.-lb. | 45 |
| Type | 1/4" Chuck |
| Weight with Chuck kg | 1.20 |
| Side to Center Distance mm | 14 |
| cfm | 15 |
| Height of Head mm | 75 |
| Side to Center Distance in. | 17/32 |
| Chuck Capacity mm | 6 |
| Length with Chuck in. | 9.41 |
| Length with Chuck mm | 240 |
| Weight with Chuck lb. | 2.63 |
| Height of Head in. | 2.97 |
| Air Consumption (L/min) |
A Genuine Ingersoll Rand product.
To view our complete selection of air and electric drills, click here to return to Drills and Tappers - Home.
