Proven Quality and ReliabilityThe popular 6 Series Angle Drills deliver results day after day. And excellent power-to-weight ratio gets the job done with less fatigue. Available with Aerospace Heads (A1models) or standard chucks.
Call Zampini Industrial Group Group at 1-800-353-4676 for more info.
A Genuine Ingersoll Rand product.
To view our complete selection of air and electric drills, click here to return to Drills and Tappers - Home.
View AllClose
- Maximum TIR runout of .005? ensures precision holes for critical applications
- Infinitely variable speed allows slow speed starting and high speed drilling
- Angle head may be rotated 360 degree to allow ideal orientation with the throttle
- Ergonomically designed housing provides a secure surface for operator grip
- Modular design allows maximum parts interchangeability and easy, low coast maintenance
Call Zampini Industrial Group Group at 1-800-353-4676 for more info.

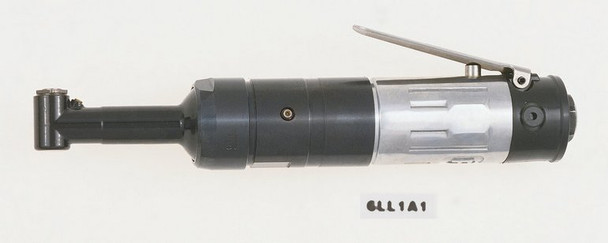

Model | 6LJ1A1 |
Height of Head (in) | 1.13 |
Height of Head (mm) | 28 |
Chuck Capacity in. | 1/4"-28 Female Thread |
Free Speed rpm | 5100 |
Stall Torque Nm | 3.1 |
Stall Torque in.-lb. | 27 |
Type | 90 Deg. Aerospace |
Weight with Chuck kg | 0.95 |
Side to Center Distance mm | 8 |
cfm | 20 |
Side to Center Distance in. | 21/64 |
Chuck Capacity mm | NA |
Length with Chuck in. | 9.69 |
Length with Chuck mm | 246 |
Weight with Chuck lb. | 2.13 |
Air Consumption (L/min) |
