Description

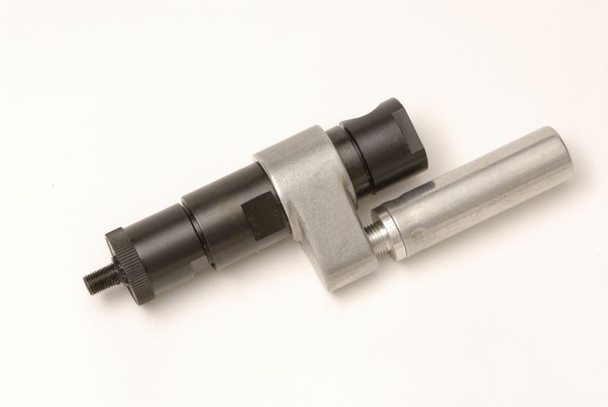

7544-B Specifications
Model | 7544-B |
Air Consumption at Max. Power (scfm) | 20.0 |
Free Speed rpm | 900 |
Weight lbs. | 1.82 |
Spindle | 3/8" Keyed |
Sound Level @ Free Speed dB(A) | 75 |
Reversible | Yes |
Torque Stall (Nm) | 6.4 |
Torque Output @ Max. H.P. (lb. ft.) | 2.62 |
Weight kg. | .82 |
Air Consumption @ Free Speed cfm (L/min) | 9.4 |
Torque Stall (lb.ft.) | 4.75 |
Load Speed @ Max. H.P. (Rpm) | 550 |
Gear Reduction | Double |
Torque Output @ Max. H.P. (Nm) | 3.5 |
- Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
- Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
- Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
- Compact and Portable: Get maximum horsepower in minimum size.
- Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
- No shock starts: Air cushioned start-up cuts stress to your equipment.
- Do not see what you need or want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. In many cases, we can provide ??special? non-cataloged motors for unique applications.
- Options for thread on Male Square adapters, Hex ball adapters and Drill chucks and Arbor
- Exhaust manifold and muffler rotates 360 degrees
- Flange Bracket Option
- Foot Bracket Option
To view our complete selection of pneumatic air motors, return to Air Motors - Home.
CCN Number 4155800
Last updated on August 3rd 2021 - ATP115
Additional Information
Line: |
000 Series Air Motors |
Max Power (hp): |
0.25 |
Reversible: |
Yes |
Torque Stall (ft lb): |
4.75 |
Free Speed (rpm): |
900 |
Torque Output @ Max. H.P. (ft-lb): |
2.375 |
Speed at Max. Power (rpm): |
450 |
