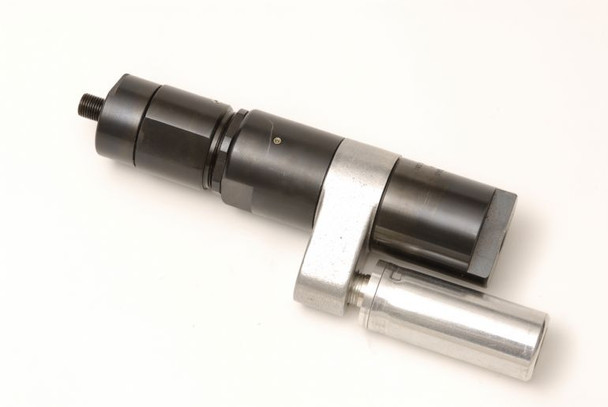

7813-1B Multi-Vane Air Motor - In-Line Planetary Gear Series by Ingersoll Rand

7813-1B Specifications

Model	7813-1B
Air Consumption at Max. Power (scfm)	41.7
Free Speed rpm	650
Weight lbs.	5.17
Spindle	1/2"-20 Thd.
Sound Level @ Free Speed dB(A)	78
Torque Output @ Max. H.P. (lb.ft.)	13.95
Reversible	No
Torque Stall (Nm)	41.2
Weight kg.	2.33
Air Consumption @ Free Speed cfm (L/min)	19.7
Torque Stall (lb.ft.)	30.00
Load Speed @ Max. H.P. (Rpm)	320
Gearing	Bolt-On
Gear Reduction	Double
Torque Output @ Max. H.P. (Nm)	19.1

• Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
• Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
• Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
• Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
• Compact and Portable: Get maximum horsepower in minimum size.
• Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
• Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
• No shock starts: Air cushioned start-up cuts stress to your equipment.
• Do not see what you need or want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. In many cases, we can provide ƒ??specialƒ? non-cataloged motors for unique applications.
• Options for thread on Male Square adapters and Drill chucks
• Exhaust manifold and muffler rotates 360 degrees
• Flange Bracket Option
• Foot Bracket Option

To view our complete selection of pneumatic air motors, return to Air Motors - Home.
CCN Number 4157624
