Description

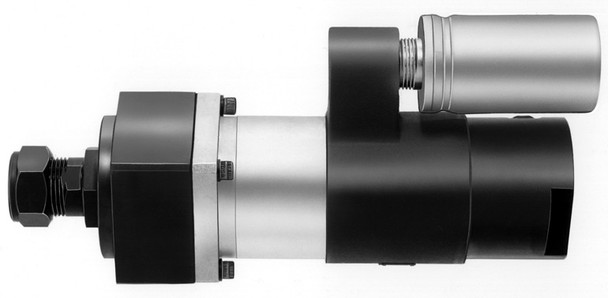

8202-4A( ) Specifications
Model | 8202-4A( ) |
Air Consumption at Max. Power (scfm) | 95.0 |
Free Speed rpm | 900 |
Weight lbs. | 18.24 |
Spindle | 3/4" Maximum Collet Capacity |
Sound Level @ Free Speed dB(A) | 80 |
Torque Output @ Max. H.P. (lb.ft.) | 24.00 |
Torque Stall (Nm) | 54.9 |
Weight kg. | 8.20 |
Air Consumption @ Free Speed cfm (L/min) | 44.8 |
Torque Stall (lb.ft.) | 40.50 |
Load Speed @ Max. H.P. (Rpm) | 445 |
Gear Reduction | Double |
Torque Output @ Max. H.P. (Nm) | 32.5 |
- Integral Erickson style collet for improved precision
- Optional collet sizes 3/4? and below for added flexibility.
- Accepts male shanks for quick change over of bits, wheels or brushes
- Extra bearing support in the front end for improved side load capibilities
- Exhaust manifold and muffler rotates 360 degrees
- Flange Bracket Option
- Foot Bracket Option
- Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
- Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
- Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
- Compact and Portable: Get maximum horsepower in minimum size.
- Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
- No shock starts: Air cushioned start-up cuts stress to your equipment.
- Do not see what you need or want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. In many cases, we can provide ??special? non-cataloged motors for unique applications.
Additional Information
Line: |
44 Series Milling Motors |
Max Power (hp): |
2 |
Reversible: |
No |
Torque Stall (ft lb): |
40.5 |
Free Speed (rpm): |
900 |
Torque Output @ Max. H.P. (ft-lb): |
20.25 |
Speed at Max. Power (rpm): |
445 |
