Description

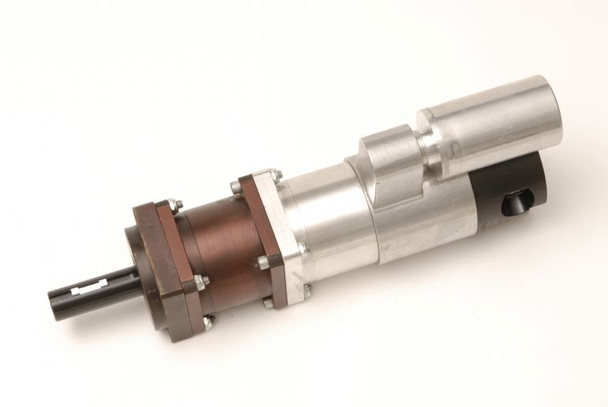

8204-A Specifications
Model | 8204-A |
Air Consumption at Max. Power (scfm) | 95.0 |
Free Speed rpm | 3,500 |
Weight lbs. | 13.82 |
Torque Output @ Max. H.P.(lb.ft.) | 6.00 |
Spindle | 7/8" Keyed |
Sound Level @ Free Speed dB(A) | 80 |
Reversible | No |
Torque Stall (Nm) | 13.8 |
Weight kg. | 5.21 |
Air Consumption @ Free Speed cfm (L/min) | 44.8 |
Torque Output @ Max. H.P.(Nm) | 8.1 |
Torque Stall (lb.ft.) | 10.20 |
Load Speed @ Max. H.P. (Rpm) | 1,740 |
Gear Reduction | Single |
- Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
- Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
- Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
- Compact and Portable: Get maximum horsepower in minimum size.
- Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
- No shock starts: Air cushioned start-up cuts stress to your equipment.
- Do not see what you need or want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. In many cases, we can provide ??special? non-cataloged motors for unique applications.
- Options for thread on Male Square adapter
- Exhaust manifold and muffler rotates 360 degrees
- Foot Bracket Option
To view our complete selection of pneumatic air motors, return to Air Motors - Home.
CCN Number 4158770
Last updated on August 3rd 2021 - ATP115
Additional Information
Line: |
44 Series Air Motors |
Max Power (hp): |
2 |
Reversible: |
No |
Torque Stall (ft lb): |
10.2 |
Free Speed (rpm): |
3500 |
Torque Output @ Max. H.P. (ft-lb): |
5.1 |
Speed at Max. Power (rpm): |
1750 |
