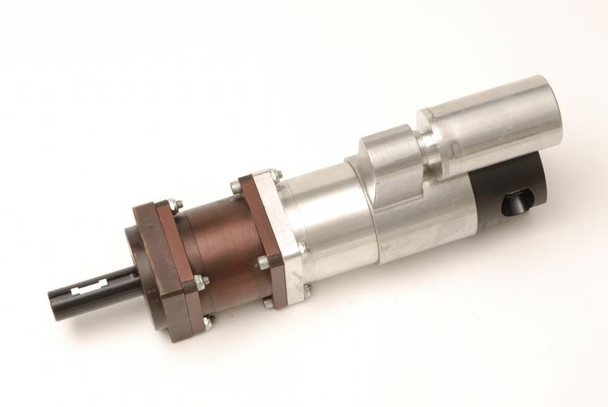

8206-A Multi-Vane Air Motor - In-Line Planetary Gear Series by Ingersoll Rand

8206-A Specifications

Model	8206-A
Air Consumption at Max. Power (scfm)	93.5
Free Speed rpm	275
Weight lbs.	18.24
Torque Output @ Max. H.P.(lb.ft.)	66.5
Spindle	7/8" Keyed
Sound Level @ Free Speed dB(A)	95
Reversible	Yes
Torque Stall (Nm)	142.3
Weight kg.	8.20
Air Consumption @ Free Speed cfm (L/min)	44.1
Torque Output @ Max. H.P.(Nm)	90.1
Torque Stall (lb.ft.)	105.00
Load Speed @ Max. H.P. (Rpm)	150
Gear Reduction	Double

• Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
• Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
• Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
• Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
• Compact and Portable: Get maximum horsepower in minimum size.
• Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
• Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
• No shock starts: Air cushioned start-up cuts stress to your equipment.
• Do not see what you need or want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. In many cases, we can provide ƒ??specialƒ? non-cataloged motors for unique applications.
• Options for thread on Male Square adapter
• Exhaust manifold and muffler rotates 360 degrees
• Foot Bracket Option

To view our complete selection of pneumatic air motors, return to Air Motors - Home.
CCN Number 4158812
