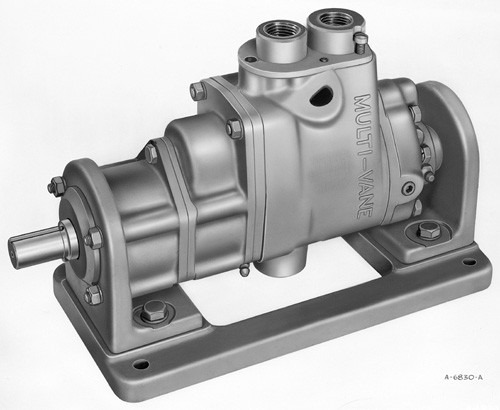

Ingersoll Rand 22N51-W/RC MOTOR

Model	22N51-W/RC
Starting Torque lb.-ft.	49
Weight lb.	21
Speed at Max. Power (rpm)	208
Air Consumption at Max. Power (scfm)	55
Free Speed rpm	280
Stall Torque Nm	89.5
Air Consumption at Max. Power (m^3/m)	1.6
Weight kg	9.5
Stall Torque lb.-ft.	66
Starting Torque Nm	66.4
Max. Power kw	1.31
Max. Power hp	1.75

22N Series, Multi-vane Air Motor. 1.75 hp (1.31 Kw). 275 rpm with built in governor for maximum speed control. Torque adjustability through air controls.

• Governed motors for improved speed control
• Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
• Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
• Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
• Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
• Compact and Portable: Get maximum horsepower in minimum size.
• Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
• Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
• No shock starts: Air cushioned start-up cuts stress to your equipment.
• Do not see what you need or want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. In many cases, we can provide ƒ??special" non-cataloged motors for unique applications. Call our technical support group in White House Tennessee at 800-866-5457.

For more information on the Ingersoll Rand 22N51-W/RC please call AirToolPro / Zampini Industrial Group at 1-800-353-4676
CCN Number 1023373
