Description
| Model | 48RB078 |
| Starting Torque lb.-ft. | 364 |
| Weight lb. | 75 |
| Speed at Max. Power (rpm) | 60 |
| Air Consumption at Max. Power (scfm) | 90 |
| Free Speed rpm | 108 |
| Stall Torque Nm | 696 |
| Air Consumption at Max. Power (m^3/m) | 2.55 |
| Weight kg | 34 |
| Stall Torque lb.-ft. | 513 |
| Starting Torque Nm | 494 |
| Max. Power kw | 2.24 |
| Max. Power hp | 3 |

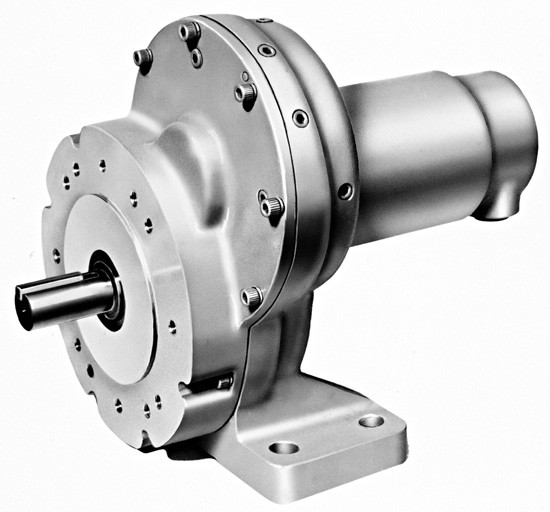

48RA and 48RB series, spur gear, Multi-vane Air Motors. 3.00 hp to 3.10 hp (2.24 to 2.31 Kw). 60 rpm to 1300 rpm with adjustability through air controls. Ideal for low rpm / high torque applications.
- Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
- Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
- Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
- Compact and Portable: Get maximum horsepower in minimum size.
- Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
- No shock starts: Air cushioned start-up cuts stress to your equipment.
- Do not see what you need or want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. In many cases, we can provide ??special" non-cataloged motors for unique applications. Call our technical support group in White House Tennessee at 800-866-5457.
- Integral face and foot mount standard
- Inlet ports may be rotated for optional mounting configurations
For more information on the Ingersoll Rand 48RB078 please call AirToolPro / Zampini Industrial Group at 1-800-353-4676
To view our complete selection of pneumatic air motors, return to Air Motors - Home.
CCN Number 1135003
Last updated on August 3rd 2021 - ATP115
Additional Information
Line: |
48 Series Air Motors |
Max Power (hp): |
3 |
Reversible: |
Yes |
Torque Stall (ft lb): |
513 |
Free Speed (rpm): |
108 |
Torque Output @ Max. H.P. (ft-lb): |
256.5 |
Speed at Max. Power (rpm): |
54 |
