Description
Model | 551S051-W/RC |
Starting Torque lb.-ft. | 650 |
Weight lb. | 93 |
Speed at Max. Power (rpm) | 59 |
Air Consumption at Max. Power (scfm) | 160 |
Free Speed rpm | 77 |
Stall Torque Nm | 1200 |
Air Consumption at Max. Power (m^3/m) | 4.53 |
Weight kg | 42.2 |
Stall Torque lb.-ft. | 885 |
Starting Torque Nm | 881 |
Max. Power kw | 4.18 |
Max. Power hp | 5.6 |

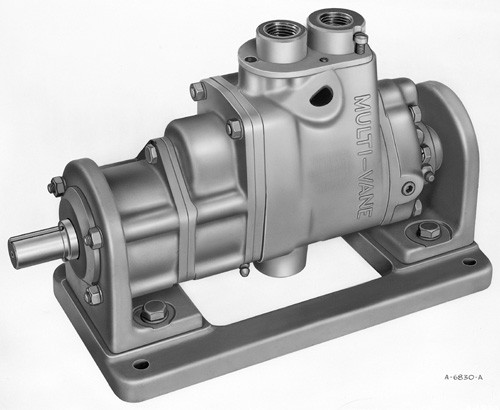

551N Series, Multi-vane Air Motor. 5.60 hp (4.18 Kw). 77 to 120 rpm with built in governor for maximum speed control. Torque adjustability through air controls.
- Governed motors for improved speed control
- Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
- Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
- Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
- Compact and Portable: Get maximum horsepower in minimum size.
- Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
- No shock starts: Air cushioned start-up cuts stress to your equipment.
- Do not see what you need or want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. In many cases, we can provide ??special" non-cataloged motors for unique applications. Call our technical support group in White House Tennessee at 800-866-5457.
For more information on the Ingersoll Rand 551S051-W/RC please call AirToolPro / Zampini Industrial Group at 1-800-353-4676
CCN Number 1026897
Last updated on August 3rd 2021 - ATP115
Additional Information
Line: |
551 Series Air Motors |
Max Power (hp): |
5.6 |
Reversible: |
Yes |
Torque Stall (ft lb): |
885 |
Free Speed (rpm): |
77 |
Torque Output @ Max. H.P. (ft-lb): |
442.5 |
Speed at Max. Power (rpm): |
59 |
