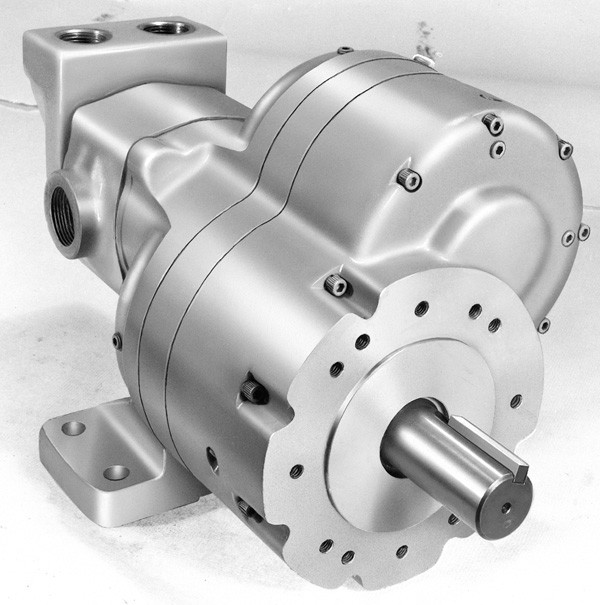

Ingersoll Rand 92RA014 MOTOR -- MULTI-VANE

Model	92RA014
Starting Torque lb.-ft.	152
Weight lb.	46
Speed at Max. Power (rpm)	327
Air Consumption at Max. Power (scfm)	230
Free Speed rpm	682
Stall Torque Nm	282
Air Consumption at Max. Power (m^3/m)	6.51
Weight kg	20.9
Stall Torque lb.-ft.	208
Starting Torque Nm	206
Max. Power kw	6.08
Max. Power hp	8.15

92RA and 92RB series, spur gear, Multi-vane Air Motors. 7.90 hp to 8.15 hp (5.89 to 6.08 Kw). 59 rpm to 975 rpm with adjustability through air controls. Ideal for low rpm / high torque applications.

• Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
• Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
• Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
• Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
• Compact and Portable: Get maximum horsepower in minimum size.
• Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
• Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
• No shock starts: Air cushioned start-up cuts stress to your equipment.
• Do not see what you need or want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. In many cases, we can provide ƒ??special" non-cataloged motors for unique applications. Call our technical support group in White House Tennessee at 800-866-5457.
• Integral face and foot mount standard on 92RA and 92RB series
• Inlet ports may be rotated for optional mounting configurations

For more information on the Ingersoll Rand 92RA014 please call AirToolPro / Zampini Industrial Group at 1-800-353-4676
