Description
| Model | 992RM1 |
| Max Power hp | 8.15 |
| Max Power kw | 6.08 |
| Speed at Max. Power (rpm) | 1730 |
| Free Speed (rpm) | 3600 |
| Starting Torque lb.-ft. | 28.7 |
| Starting Torque Nm | 38.9 |
| Stall Torque lb.-ft. | 39 |
| Stall Torque Nm | 52.9 |
| Air Consumption at Max. Power (scfm) | 230 |
| Air Consumption at Max. Power (m^3/m) | 6.51 |
| Weight lb. | 25.25 |
| Weight kg | 11.3 |

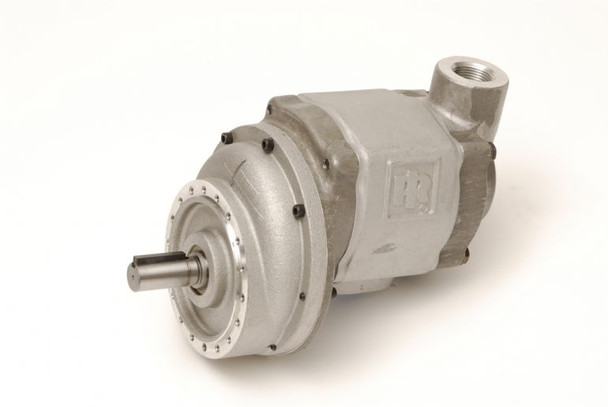

92RM and 992RM series, spur gear, Multi-vane Air Motors. 8.15 hp to 9.9 hp (6.08 kw to 7.38 kw). 1730 rpm to 2095 rpm with adjustability through air controls.
For more information on the Ingersoll Rand 992RM1 please call AirToolPro / Zampini Industrial Group at 1-800-353-4676
To view our complete selection of pneumatic air motors, return to Air Motors - Home.
CCN Number 1134162
Additional Information
Line: |
92 RM | 992 RM Series Air Motors |
Max Power (hp): |
8.15 |
Reversible: |
Yes |
Torque Stall (ft lb): |
39 |
Free Speed (rpm): |
3600 |
Torque Output @ Max. H.P. (ft-lb): |
19.5 |
Speed at Max. Power (rpm): |
1800 |
