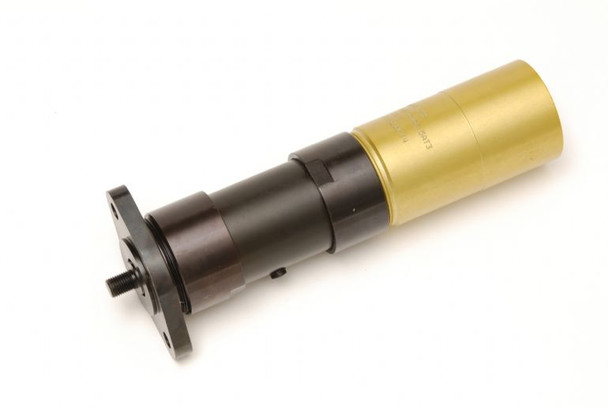

M004RHR023AR3 Multi-Vane Air Motor - In-Line Planetary Gear Series by Ingersoll Rand

M004RHR023AR3 Specifications

Model	M004RHR023AR3
Starting Torque lb.-ft.	8.10
Weight lb.	2-3/8
Speed at Max. Power (rpm)	395
Air Consumption at Max. Power (scfm)	19.0
Free Speed rpm	715
Stall Torque Nm	14.6
Air Consumption at Max. Power (m^3/m)	0.54
Reversible	No
Weight kg	1.09
Stall Torque lb.-ft.	10.8
Starting Torque Nm	11.0
Max. Power kw	0.33
Max. Power hp	0.44

• Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
• Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
• Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
• Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
• Compact and Portable: Get maximum horsepower in minimum size.
• Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
• Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
• No shock starts: Air cushioned start-up cuts stress to your equipment.
• Do not see what you need or want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. In many cases, we can provide ƒ??specialƒ? non-cataloged motors for unique applications.
• Two hole ƒ??Aƒ? flange standard. Optional 4 hole ƒ??Bƒ? flange available
• 3/8ƒ?-24 Threaded shaft option
• Side inlet option on reversible models
• Square Drive thread on option available

To view our complete selection of pneumatic air motors, return to Air Motors - Home.
CCN Number 1238013
