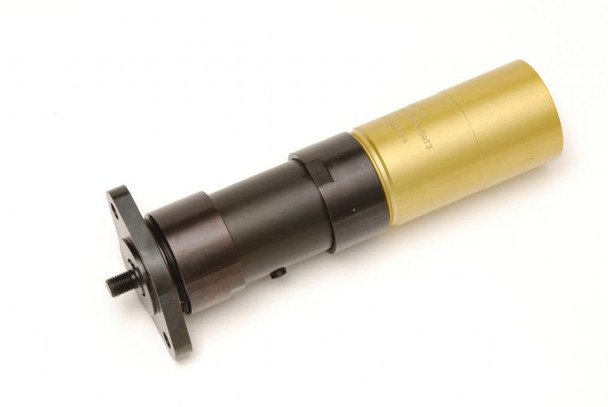

M004RHR167AR3 Multi-Vane Air Motor - In-Line Planetary Gear Series by Ingersoll Rand

M004RHR167AR3 Specifications

Model	M004RHR167AR3
Starting Torque lb.-ft.	55.0
Weight lb.	2-11/16
Speed at Max. Power (rpm)	53
Air Consumption at Max. Power (scfm)	18.5
Free Speed rpm	95
Stall Torque Nm	99.4
Air Consumption at Max. Power (m^3/m)	0.52
Reversible	No
Weight kg	1.22
Stall Torque lb.-ft.	73.3
Starting Torque Nm	74.5
Max. Power kw	0.31
Max. Power hp	0.41

• Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
• Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
• Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
• Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
• Compact and Portable: Get maximum horsepower in minimum size.
• Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
• Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
• No shock starts: Air cushioned start-up cuts stress to your equipment.
• Do not see what you need or want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. In many cases, we can provide ƒ??specialƒ? non-cataloged motors for unique applications.
• Two hole ƒ??Aƒ? flange standard. Optional 4 hole ƒ??Bƒ? flange available
• 3/8ƒ?-24 Threaded shaft option
• Side inlet option on reversible models
• Square Drive thread on option available

To view our complete selection of pneumatic air motors, return to Air Motors - Home.
CCN Number 1238104
