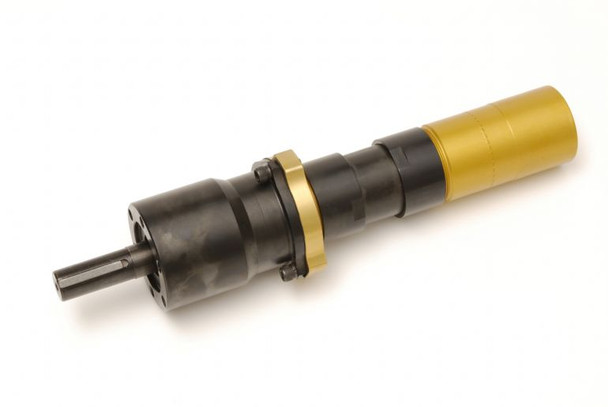

M007RVR275BR6 Multi-Vane Air Motor - In-Line Planetary Gear Series by Ingersoll Rand

M007RVR275BR6 Specifications

Model	M007RVR275BR6
Starting Torque lb.-ft.	111.0
Weight lb.	7-3/8
Speed at Max. Power (rpm)	32
Air Consumption at Max. Power (scfm)	33
Free Speed rpm	64
Stall Torque Nm	201.0
Air Consumption at Max. Power (m^3/m)	0.93
Reversible	Yes
Weight kg	3.4
Stall Torque lb.-ft.	148.0
Starting Torque Nm	151.0
Max. Power kw	0.46
Max. Power hp	0.61

• Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
• Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications. Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
• Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
• Compact and Portable: Get maximum horsepower in minimum size. Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
• Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
• No shock starts: Air cushioned start-up cuts stress to your equipment.
• Do not see what you need or want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. In many cases, we can provide ƒ??specialƒ? non-cataloged motors for unique applications.
• Two hole ƒ??Aƒ? flange standard on 000, 004, 006, 009, 012, 015, 021, 027, 037, 044 gear ratios, Optional 4 hole ƒ??Bƒ? flange available on these models.
• 3/8ƒ?-24 or ?«ƒ?-20 threaded shaft options available on 000, 004, 006, 009, 012, 015, 021, 027, 037, 044 gear ratios.
• Six hole ƒ??Bƒ? flange standard on 063, 086, 119, 151, 188, 275 and 374 gear ratios.
• Square drive option available

To view our complete selection of pneumatic air motors, return to Air Motors - Home.
CCN Number 1241017
