Description

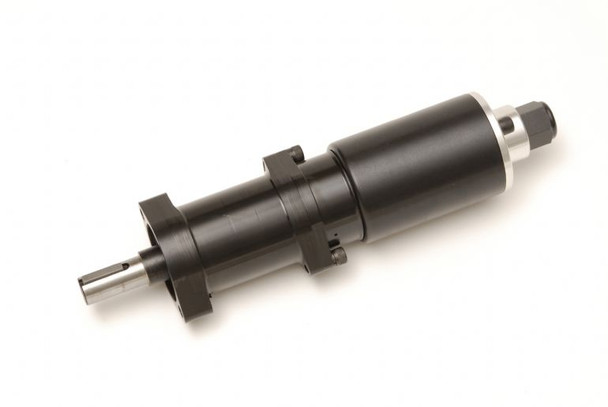

1801N Specifications
| Model | 1801N |
| Starting Torque lb.-ft. | 10.5 |
| Weight lb. | 5-3/8 |
| Speed at Max. Power (rpm) | 918 |
| Air Consumption at Max. Power (scfm) | 46 |
| Free Speed rpm | 1990 |
| Stall Torque Nm | 19.0 |
| Air Consumption at Max. Power (m^3/m) | 1.3 |
| Weight kg | 2.44 |
| Stall Torque lb.-ft. | 14 |
| Starting Torque Nm | 14.2 |
| Max. Power kw | 1.04 |
| Max. Power hp | 1.40 |
- Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications. Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
- Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
- Compact and Portable: Get maximum horsepower in minimum size.
- Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
- No shock starts: Air cushioned start-up cuts stress to your equipment.
- Do not see what you need or want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. In many cases, we can provide ??special? non-cataloged motors for unique applications.
- Two hole face mount standard
- Optional ??? npt piped away exhaust option available
- Square drive option available
To view our complete selection of pneumatic air motors, return to Air Motors - Home.
CCN Number 1235480
