Description

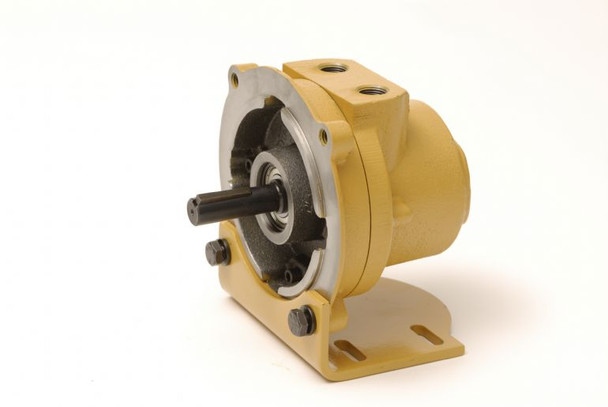

MVA017A Specifications
| Model | MVA017A |
| Max Power hp | 1.93 |
| Max Power kw | 1.44 |
| Speed at Max. Power (rpm) | 2800 |
| Free Speed (rpm) | 5450 |
| Starting Torque lb.-ft. | 4.5 |
| Starting Torque Nm | 6.1 |
| Stall Torque (ft.-lb.) | 7 |
| Stall Torque Nm | 9.5 |
| Air Consumption at Max. Power (scfm) | 76 |
| Air Consumption at Max. Power (m^3/m) | 2.15 |
| Weight lb. | 12.5 |
| Weight (kg) | 5.67 |
- Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive environments.
- Instantly reversible.
- Compact and portable: Get maximum horsepower in minimum size.
- Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean air supply and proper lubrication.
- No shock starts: Air cushioned start-up cuts stress on your equipment.
- Mounting options: Face and foot mount.
