Description

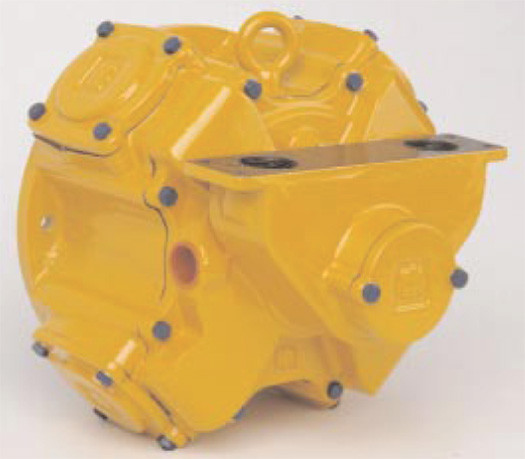

MMP 150 Specifications
| Model | MMP 150 |
| Starting Torque lb.-ft. | 61.0 |
| Speed at Max. Power (rpm) | 1800 |
| Air Consumption at Max. Power (scfm) | 425 |
| Free Speed rpm | 3800 |
| Stall Torque Nm | 105.8 |
| Air Consumption at Max. Power (m^3/m) | 12.0 |
| Stall Torque lb.-ft. | 78.0 |
| Starting Torque Nm | 82.7 |
| Max. Power kw | 11.9 |
| Max. Power hp | 16.0 |
- Lubrication Free models available
- Natural Gas operation models available
- NEMA, SAE and Foot mount models available
- Fenner RM410 interface available
- Manual and Remote control options available
- Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
- Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
- Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
- Compact and Portable: Get maximum horsepower in minimum size.
- Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
- No shock starts: Air cushioned start-up cuts stress to your equipment.
- Do not see what you need or want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. In many cases, we can provide ??special? non-cataloged motors for unique applications.
To view our complete selection of pneumatic air motors, return to Air Motors - Home.
