Description
| Model | BHD-20 |
| Weight of Balancer lb (net - kg) | 23.4 (10.6) |
| Lift ft (mm) | 6.5 (2000) |
| Capacity, lbs (kg) | 33 - 44 (15 -20) |
Series consist of 8 models.

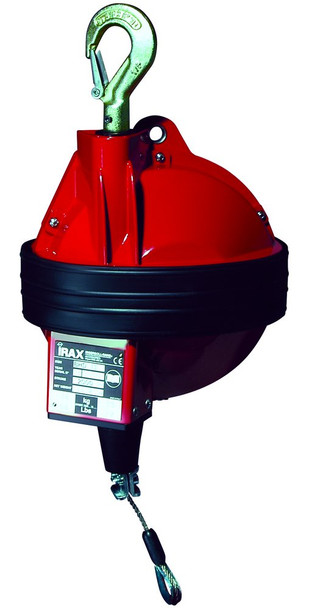

- Ribbed and sealed monobloc construction in aluminum alloy.
- Stainless steel cable.
- Safety device against load dropping due to the spring breakage (>3kg).
- Upper rotary suspension with safety hook.
- Locking device to block the load at any height.
- Adjustable stroke limiting device.
- Cable guide in anti-friction material.
For more information on the Ingersoll Rand BHD-20 please call AirToolPro / Zampini Industrial Group at 1-800-353-4676
CCN Number 92841964
