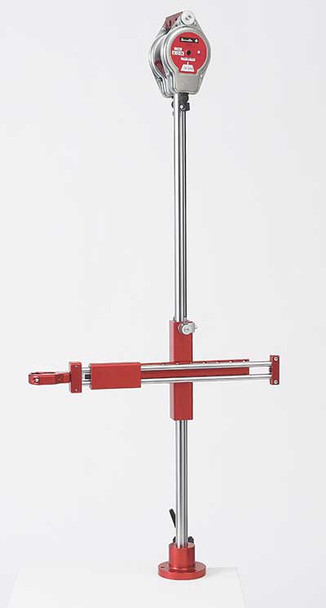

D53-12 by Desoutter - 6158107010

D53-12 -

Benefits

Takes away the tool torque & weight from the operator wrist

Improves quality of work and torque accuracy

Features

Up to 12 Nm

90 degrees tool clamp interface for straight or pistol grip tools

Universal clamp included (28,5mm - 41mm)

2 balancers 5DU included

Available Now At AirToolPro.com / Zampini Industrial 1-800-353-4676

Part number	6158107010
Model	D53-12
Max torque	12 Nm	8.8 ft.lbs
Max torque	8.8 ft.lbs	12 Nm
Max. tool weight	1.5 kg	3.3 lb
Max. tool weight	3.3 lb	1 1/2 kg
Arm equipped with	2 x 5DU
Tool clamp diameter	28,5 - 41	1,12 - 1,62
Tool clamp diameter	1,12 - 1,62	28,5 - 41
Dimension A	888 mm	35"
Dimension A	35"	888 mm
Dim. Maxi-B	710 mm	28"
Dim. Maxi-B	28"	710 mm
Dim. Mini-B	260 mm	10.2"
Dim. Mini-B	10.2"	260 mm
Dimension C	465 mm	18.3"
Dimension C	18.3"	465 mm
Dimension D	255 mm	10"
Dimension D	10"	255 mm
Dimension E	196 mm	7.7"
Dimension E	7.7"	196 mm

Desoutter Industrial Tools are some of the finest tools available for production and manufacturing tool applications. AirToolPro.com by Zampini Industrial Group is a premier distributor of Desoutter Air and Electric Tools, and has been a trusted Desoutter Partner since 1987! From precision torque screwdrivers to DC Electric systems to proven high performance air grinders, Desoutter has you covered. Desoutter tools have best in class performance, fit, and finish, and they are designed to achieve the impressive goals below as thoroughly as possible:

- Good Balance	- Minimize Vibration
- Low Weight	- Minimize Exhaust Air Jet
- Minimize Torque Reaction	- Maximize Power To Weight Ratio
- Thermal Insulation	- Minimize Oil From Exhaust
- Minimize Torque Impulse	- Appropriate Size
- Minimize Necessary Trigger Loading	- Excellent Grip
