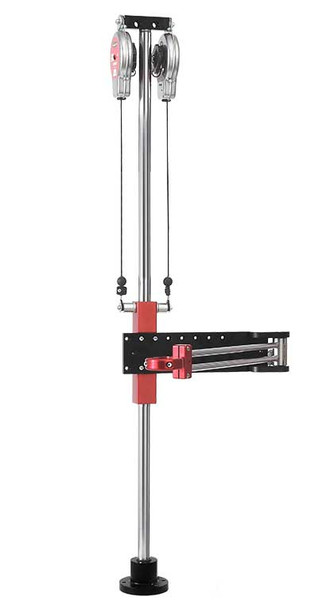

D53-25S by Desoutter - 6158107080

D53-25S -

Benefits

Greater working area covered

Takes away the tool torque & weight from the operator wrist

Improves quality of work and torque accuracy

Features

Up to 25Nm

90 degrees tool clamp interface for straight or pistol grip tools

Universal clamp included (28,5mm - 41mm)

2 balancers 5DU included

Available Now At AirToolPro.com / Zampini Industrial 1-800-353-4676

Part number	6158107080
Model	D53-25S
Max torque	25 Nm	18.4 ft.lbs
Max torque	18.4 ft.lbs	25 Nm
Max. tool weight	2.5 kg	5 1/2 lb
Max. tool weight	5 1/2 lb	2 1/2 kg
Arm equipped with	2 x 5DU
Tool clamp diameter	28,5 - 41	1,12 - 1,62
Tool clamp diameter	1,12 - 1,62	28,5 - 41
Dimension A	1132 mm	44.6"
Dimension A	44.6"	1132 mm
Dimension B	296 mm	11.65"
Dimension B	11.65"	296 mm
Dimension C	580 mm	22.8"
Dimension C	22.8"	580 mm
Dimension D	470 mm	18.5"
Dimension D	18.5"	470 mm
Dimension E	168 mm	6.6"
Dimension E	6.6"	168 mm
Radius R	685 mm	27"
Radius R	27"	685 mm
Radius R1	183 mm	7.2"
Radius R1	7.2"	183 mm

Desoutter Industrial Tools are some of the finest tools available for production and manufacturing tool applications. AirToolPro.com by Zampini Industrial Group is a premier distributor of Desoutter Air and Electric Tools, and has been a trusted Desoutter Partner since 1987! From precision torque screwdrivers to DC Electric systems to proven high performance air grinders, Desoutter has you covered. Desoutter tools have best in class performance, fit, and finish, and they are designed to achieve the impressive goals below as thoroughly as possible:

- Good Balance	- Minimize Vibration
- Low Weight	- Minimize Exhaust Air Jet
- Minimize Torque Reaction	- Maximize Power To Weight Ratio
- Thermal Insulation	- Minimize Oil From Exhaust
- Minimize Torque Impulse	- Appropriate Size
- Minimize Necessary Trigger Loading	- Excellent Grip
