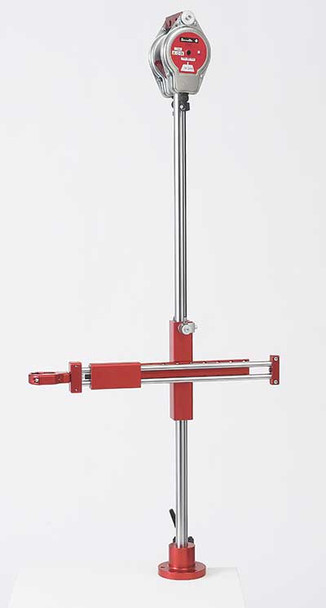

D53-25X Extended reach by Desoutter - 6158107030

D53-25X Extended reach -

Benefits

Takes away the tool torque & weight from the operator wrist

Improves quality of work and torque accuracy

Features

Up to 25 Nm

Extended reach

90 degrees tool clamp interface for straight or pistol grip tools

2 balancers 5DU included

Universal clamp included (28,5mm - 41mm)

Available Now At AirToolPro.com / Zampini Industrial 1-800-353-4676

Part number	6158107030
Model	D53-25X Extended reach
Max torque	25 Nm	18.4 ft.lbs
Max torque	18.4 ft.lbs	25 Nm
Max. tool weight	2.2 kg	4.8 lb
Max. tool weight	4.8 lb	2.2 kg
Arm equipped with	2 x 5DU
Tool clamp diameter	28,5 - 41	1,12 - 1,62
Tool clamp diameter	1,12 - 1,62	28,5 - 41
Dimension A	1132 mm	44.6"
Dimension A	44.6"	1132 mm
Dim. Maxi-B	794 mm	31.2"
Dim. Maxi-B	31.2"	794 mm
Dim. Mini-B	230 mm	9"
Dim. Mini-B	9"	230 mm
Dimension C	615 mm	24.2"
Dimension C	24.2"	615 mm
Dimension D	290 mm	11.4"
Dimension D	11.4"	290 mm
Dim. D1	275 mm	10,8"
Dim. D1	10,8	275
Dimension E	-	-
Dimension E	-	-

Desoutter Industrial Tools are some of the finest tools available for production and manufacturing tool applications. AirToolPro.com by Zampini Industrial Group is a premier distributor of Desoutter Air and Electric Tools, and has been a trusted Desoutter Partner since 1987! From precision torque screwdrivers to DC Electric systems to proven high performance air grinders, Desoutter has you covered. Desoutter tools have best in class performance, fit, and finish, and they are designed to achieve the impressive goals below as thoroughly as possible:

- Good Balance	- Minimize Vibration
- Low Weight	- Minimize Exhaust Air Jet
- Minimize Torque Reaction	- Maximize Power To Weight Ratio
- Thermal Insulation	- Minimize Oil From Exhaust
- Minimize Torque Impulse	- Appropriate Size
- Minimize Necessary Trigger Loading	- Excellent Grip
