Description
Model | 7P24L |
Rated Power hp (kW) | 0.8 (0.6) |
Max Free Speed (rpm) | 2,400 |
Exhaust | Side |
Output | 5/8" - 11 Thread, 7" Polishing Bonnet |
Wheel Size in. (mm) | 7" (180) |
Weight lbs. (kg) | 3.25 (1.4) (without Polishing Bonnet) |
Length in. (mm) | N/A |
Vibration m/s2 | < 2.5 |
Sound Pressure/Power dBA | N/A |
Average Air Consumption cfm (L/min) | |
Air Consumption @ Load cfm (L/min) | 22 (623) |
Air Inlet Size NPT in. | 1/4" |
Min Hose Size in. (mm) | 5/16" (8) |

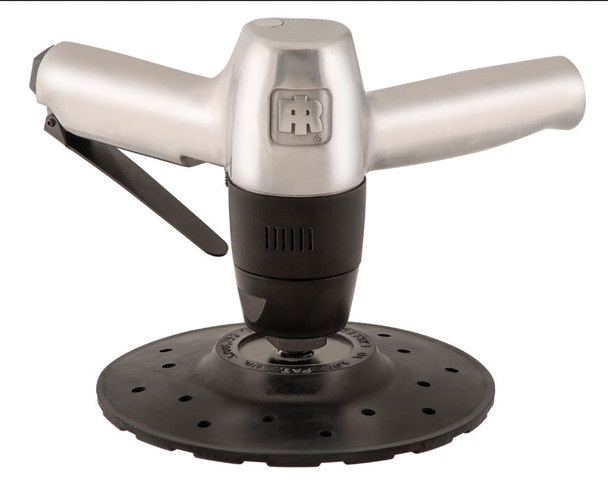

Pro Series Polishers are designed for applications involving larger areas and heavier-duty materials, powered by a 0.80 hp (0.60 kW) motor. They incorporate many of the same unique features as their counterpart grinder and sander models.
- 61 = Series (61, 77, 88, 99)
H = Type (A- angle, H- horizontal, V- vertical)
30 = Free Speed RPM (x 100)
B = Type of Wheel (B- wire brush, F- polishing head, W- sanding head)
10 = Arbor Diameter (10- 5/8"-11 Thread)
6 = Wheel Diameter in. (6, 7, 8, 9) - Solid steel motor and arbor housing provide maximum durability
- Built-in mist lubricator automatically oils motor when throttle is activated
- Heavy-duty, double-row ball bearings assure long life and smooth operation
For more information on the Ingersoll Rand 7P24L please call AirToolPro / Zampini Industrial Group at 1-800-353-4676
CCN Number 1235860
Last updated on August 3rd 2021 - ATP115
