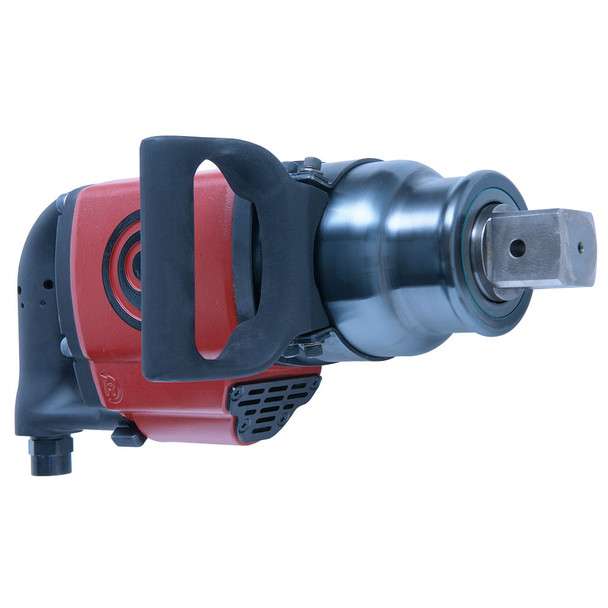

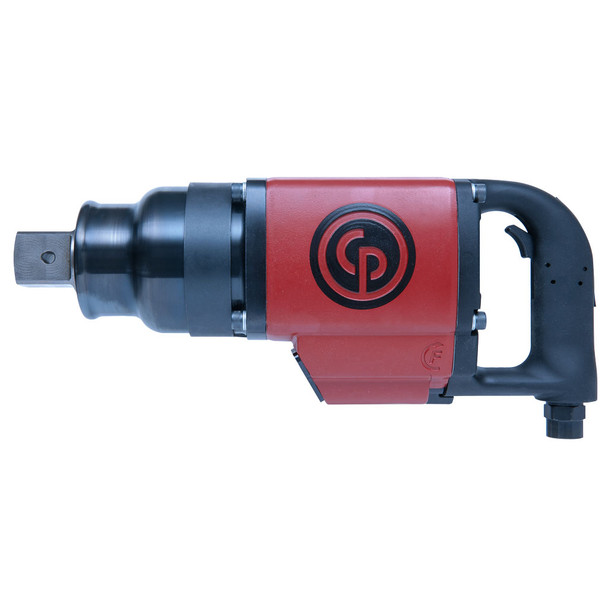

Chicago Pneumatic CP6120-D35H 1-1/2" Impact Wrench | 3600 Ft. Lbs.

CP6120-D35H - The most productive 1-1/2"

Part number	6151590120
Model	CP6120-D35H
Handle type	D-Handle Inside Trigger
Square drive	1 1/2"
Working Torque Range (fwd)	815-2,710 Nm	600-2,000
Working Torque Range (fwd)	600-2,000 ft.lbs	815-2,710
Maximum Torque (reverse)	4880 Nm	3600 ft.lbs
Maximum Torque (reverse)	3600 ft.lbs	4880 Nm
Free speed	3500 rpm
Blows per minute	960
Net weight	34.5 lb	15.65 kg
Net weight	15.65 kg	34.5 lb
Length	16.5"	420 mm
Length	420 mm	16.5"
Side to center	54 mm	2.13"
Side to center	2.13"	54 mm
Actual air consumption	60 cfm
Actual air consumption	28.3 l/s	60 cfm
Free speed air consumption	51.5 l/s
Air inlet thread size	0.5 "
Min. hose size	19 mm
Noise level	97 db(A)
Sound Power	108 db(A)
Vibration α (ISO-28927-2)	21.8 m/s²
Vibration K (ISO-28927-2)	11.8 m/s²
Socket retainer	Hole
Clutch type	2-jaw clutch
Box dimensions	505x240x145

Benefits

Unbeatable combination of power and ergonomics

Extremely low lateral vibrations for best comfort and safety

Excellent durability

The reference tool for the most demanding applications in Energy and Metal working segments

Features

Premium Industrial 1-1/2" impact wrench

CP:s 2-Jaw clutch for superior ergonomics and productivity

Very robust steel clutch housing and aluminum motor housing

Extremely comfortable handle and adjustable support handle

Possibility to change inside/outside trigger, parts included in the box

Reverse biased 15%, possiblity to change to forward biased by turning around the air motor cylinder

For more information on the CP6120-D35H impact wrench please call Zampini Industrial Group at 1-800-353-4676 and we will be happy to assist you.

Established in 1901, Chicago Pneumatic Tools offers hundreds of quality air tools designed for a wide range of maintenance and production applications: impact wrenches, ratchet wrenches, screwdrivers, drills, grinders, sanders and polishers, cutting tools, and a whole lot more. Based on decades of expertise in providing the right tools, compressors or construction equipment for the toughest demands, CP understand the needs of the professionals for maintaining and repairing heavy equipment and machinery on-site or off-site.

Zampini Industrial Group is proud to be a premier online supplier of Chicago Pneumatic Tools, and our numerous years representing the CP brand has provided us with a wide range of valuable application experiences that we use to help you get the perfect CP tool for your job!



CP Chicago Pneumatic Industrial Tools
