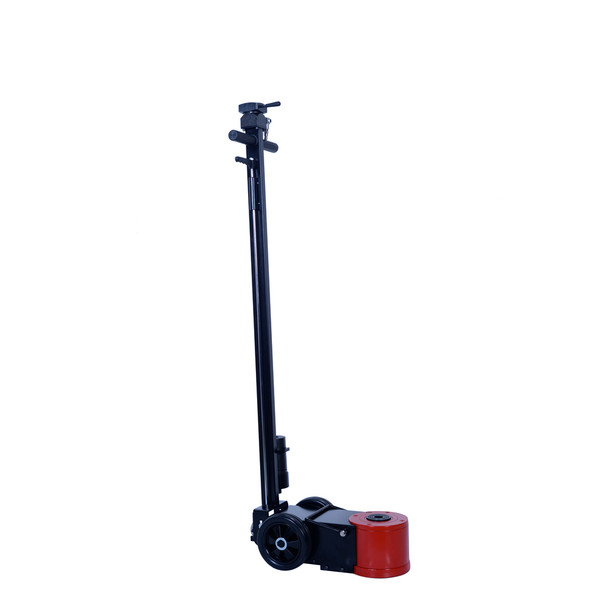

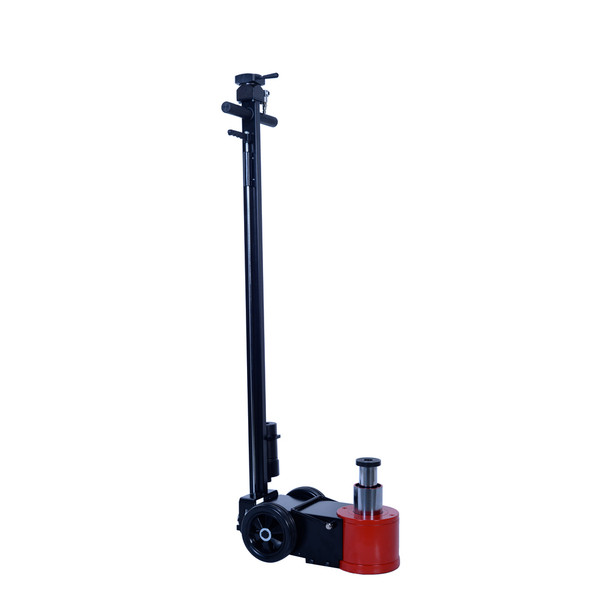

Name: Chicago Pneumatic CP85030 AIR HYDRAULIC JACK 30T | 8941085030
Brand: Chicago Pneumatic
SKU: 8941085030
Availability: OutOfStock

Description

Description

CP85030 - High Lifting Capacity high Durability, safety

Benefits

High Lifting Capacity

High Durability

Fast and easy operation controlled from the handle

Low Profile

Convenient

Easy maneuvering and to transport

Safety

Features

Maximum height: 16.1 in. / 409 mm

Air powered piston

Includes 2 extensions for higher lifting - Stored on handle for transport

Piston and pump

Anti dust seals

Ideal for easily accessing lifting points on low chassis trucks and buses

Convenient joystick controls

Cylinder mounted carrying handle

4 ¼ ft./ 1.3 m / long handle bar (1 piece handle) allows easy access to controls when fully positioned under vehicle

Handle bar locks in 3 positions: 45°, 90° & 180°

Large & soft rubber wheels


Part number	8941085030
Model	CP85030
UPC Code	015451767945
Capacity	30 / 15	33.1
Capacity	33.1 short ton(s)	30 / 15 ton(s)
Dimension A	150 mm	5.90322580645161"
Dimension A	5.90322580645161"	150 mm
Dimension B	176 mm	6.94222222222222"
Dimension B	6.94222222222222"	176 mm
Dimension C	290 mm	11.5"
Dimension C	11.5"	290 mm
Dimension D	240 mm	9.5"
Dimension D	9.5"	240 mm
Dimension E	86 mm	3.4"
Dimension E	3.4"	86 mm
Dimension D+E	326 mm	12.8"
Dimension D+E	12.8"	326 mm
Dimension F	223/289	8.8/11.4
Dimension F	8.8/11.4	223/289
Dimension G	1365 mm	53.6"
Dimension G	53.6"	1365 mm
Dimension P	71 mm	2.8"
Dimension P	2.8"	71 mm
Wheel type	Rubber
Net weight	38 kg	83.8 lb
Net weight	83.8 lb	38 kg
Box dimensions	520X290X210 1390X280X110	20.5X11.4X8.3 54.7X11.0X14.3
Box dimensions	20.5X11.4X8.3 54.7X11.0X14.3	520X290X210 1390X280X110

A Genuine Chicago Pneumatic product. For more information on this item or to order, please call Zampini Industrial Group at 1-800-353-4676.
