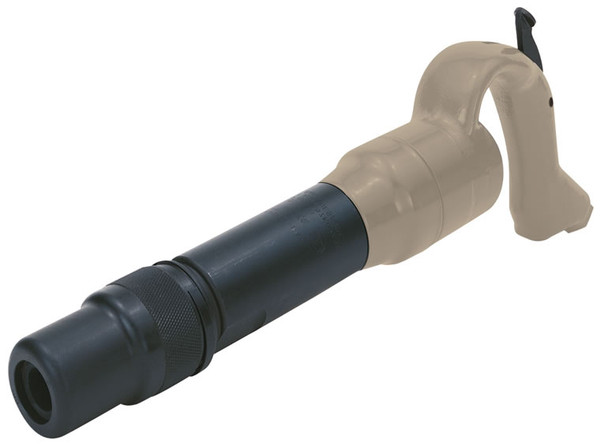

W1A1 Chipping Hammer by Ingersoll Rand Construction

Ingersoll Rand

Please Call For Pricing and Availability
Please Call For Pricing and Availability


Model W1A1
Weight lb (kg) 14.75 (6.7)
Hex Shank Size in. (mm) 0.58" (15)
Round Shank Size in. (mm) n/a
Retainer Type Rubber buffered
Blows per Minute 2,500
Stroke Length in. (mm) 1" (25)
Length w/o Accessory in. (mm) 15.88" (403)
Bore Diameter in. (mm) 1.13" (28)
Air Inlet NPT in. 3/8"
Minimum Hose Size in (mm) 1/2" (13)
Air Consumption @ Load cfm (L/min) 28 (793)
  • Swan neck handle
  • Outside trigger
  • Time tested valve durability
  • Replaceable piston
  • Long nozzle for extra life

Heavy Duty Same tough specifications as the "A" series units, but with a heavy duty front end featuring a threaded barrel and rubber buffered retainer for increased steel and retainer life.

Ingersoll Rand Construction Tools Catalog PDF

CCN Number 1001742
