Description

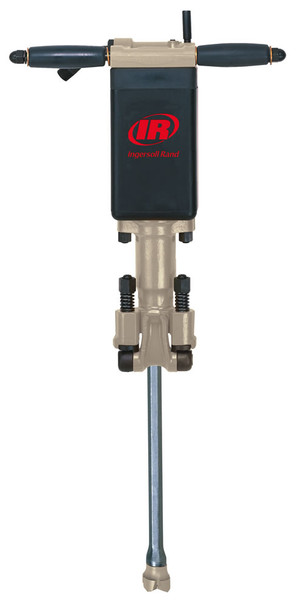

| Model | JH40C1 |
| Weight w/o Accessory lb (kg) | 61 (27.7) |
| Hex Shank Size | 7/8" x 3-1/4" |
| Stroke Length in. (mm) | 2.63" (67) |
| Bore Diameter in. (mm) | 2.5" (63.5) |
| Max Hole Diameter in. (mm) | 2" (51) |
| Max Hole Depth ft. (mm) | 18' (457) |
| Blows per Minute | 2,000 |
| Length w/o Accessory in. (mm) | 22.5" (572) |
| Air Inlet Size (NPT) in. | 3/4" |
| Minimum Hose Size in (mm) | 3/4" (19) |
| Air Consumption @ Load cfm (L/min) | 115 (3257) |
- Easy access adjustable 3 speed throttle
- Reversible pawls
- Integral muffler
- Rifle bar rotation is simple and positive
Ideal for up holes up to 18 feet (5.5 m) deep and up to 2 inch (51 mm) diameter in hard rock. It is well-suited for blast holes, post holes, anchor holes and other utility, construction, industrial and excavation applications.
Ingersoll Rand Construction Tools Catalog PDF
To view our complete selection of air and electric drills, click here to return to Drills and Tappers - Home.
CCN Number 50896398
