Description

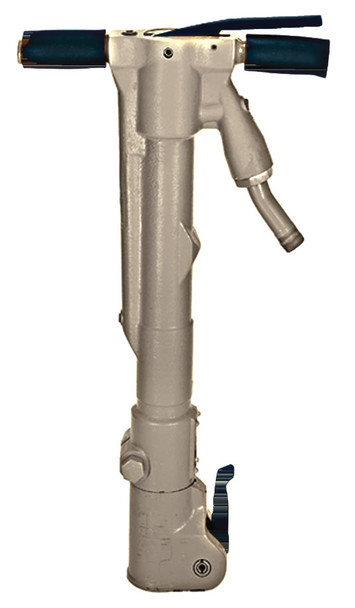

| Model | PB50AS1 |
| Handle Type | Standard |
| Muffler | Yes |
| Hex Shank Size | 1-1/8" x 6" |
| Weight w/o Accessory lbs (kg) | 55 (25) |
| Stroke Length in. (mm) | 6.25 (159) |
| Bore Diameter in. (mm) | 1.75 (44) |
| Blows per Minute | 1,150 |
| Length w/o Accessory in. (mm) | 27.5 (699) |
| Air Inlet NPT in. | 3/4 |
| Min Hose Size in. (mm) | 3/4 (19) |
| Air Consumption @ Load cfm (L/min) | 58 (1,643) |
- One piece housing eliminates costly side rods and springs
- Power -stroke piston delivers more energy to the work surface and eliminates another costly wear item, the anvil block
- Built in lubricator helps assure adequate lubrication
- Many interchangeable parts with the PB50 series helps eliminate excess inventory when carrying both models
- Two roll pins and removal of the housing plug on the top head make service access simple
Proven reliability and productivity makes the PB35 units a favorite for bridge deck resurfacing and lightweight demolition of concrete and asphalt while the PB50 units are a favorite for general demolition and an economical alternative to the MX60 and MX90 breakers.
Ingersoll Rand Construction Tools Catalog PDF
CCN Number 52085586
