Description
| Model | MX60-SD |
| Handle Type | Standard |
| Weight lb (kg) | 69 (31.4) |
| Stroke Length in. (mm) | 5.75" (146) |
| Bore Diameter in. (mm) | 2.06" (52.3) |
| Blows per Minute | 1,250 |
| Length w/o Accessory in. (mm) | 27.5" (686) |
| Air Inlet NPT in. | 3/4" |
| Min. Hose Size in. (mm) | 3/4" (19) |
| Air Consumption @ Load cfm (L/min) | 70 (1982) |
- Built in lubricator
- No side rods or springs to wear
- Composite valve eliminates valve rust
- Power-stroke piston
- Fronthead guides and supports spike

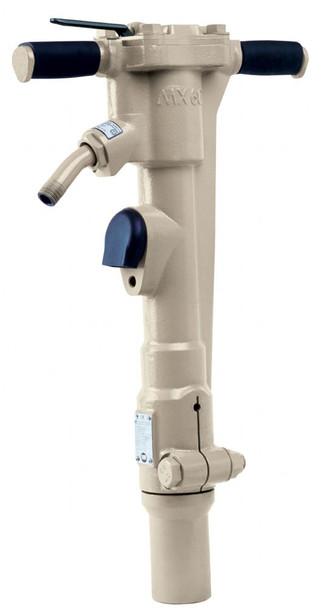

MX60 Spike Drivers Ingersoll Rand spike drivers transfer 20 percent more blow energy to the spike than traditional tools by incorporating the same hard hitting power-stroke piston technology found in our pavement breakers. The units are available with optional flex handles for enhanced operator comfort and productivity.
Ingersoll Rand Construction Tools Catalog PDF
CCN Number 51997922
