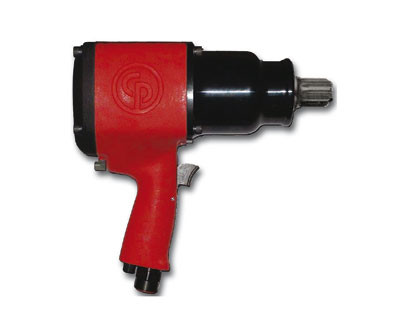

CP0611P RLS Air Impact Wrench | #5 spline | 2800ft.lbs | 6151590060 | by Chicago Pneumatic

Chicago Pneumatic

Please Call For Pricing and Availability


CP0611P RLS - The Best Heavy Duty Air Impact Wrench with Spline #5

Part number 6151590060
Model CP0611P RLS
Joint type: soft yes
Joint type: hard yes
Handle type Pistol
Square drive #5 spline"
Working Torque Range (fwd) 1,220-2,440 Nm 900-1,800
Working Torque Range (fwd) 900-1,800 ft.lbs 1,220-2,440
Maximum Torque (reverse) 3790 Nm 2800 ft.lbs
Maximum Torque (reverse) 2800 ft.lbs 3790 Nm
Free speed 3500 rpm
Blows per minute 1020
Net weight 23.1 lb 10.5 kg
Net weight 10.5 kg 23.1 lb
Power/weight ratio 361 Nm/kg 121.2 ft.lb/lb
Power/weight ratio 121.2 ft.lb/lb 361 Nm/kg
Length 10.7" 272 mm
Length 272 mm 10.7"
Side to center 46 mm 1.81"
Side to center 1.81" 46 mm
Actual air consumption 48 cfm
Actual air consumption 22.6 l/s 48 cfm
Air inlet thread size 0.5 "
Noise level 102 db(A)
Sound Power 113 db(A)
Vibration (ISO-8662-7) 12.4 m/s²
Vibration α (ISO-28927-2) 16.8 m/s²
Vibration K (ISO-28927-2) 4.7 m/s²
Socket retainer #5 spline
Clutch type 2-jaw clutch
Bolt size M36


  • Best impact to target big bolts on very demanding industries thanks to Spline #5
  • Spline #5: avoid loss of torque, reduce vibrations, increase durability of anvil
  • Operator comfort and control thanks to perfect ergonomic design even at VERY high torque
  • Constant and progressive Torque due to the 2-Jaw clutch
  • Unmatched durability with reliable mechanism and durable housing
  • Excellent for Heavy Industrial Maintenance Production applications


  • Super industrial impact with spline #5
  • Reliable 2-jaw clutch
  • Aluminum body and steel clutch housing
  • Protective and Durable reverse
  • Compact 3-part construction and easy maintenance
  • 360degree adjustable D-type side handle

For more information on the CP0611P RLS Chicago Pneumatic impact wrench please call Zampini Industrial Group at 1-800-353-4676 and we will be happy to assist you.


Established in 1901, Chicago Pneumatic Tools offers hundreds of quality air tools designed for a wide range of maintenance and production applications: impact wrenches, ratchet wrenches, screwdrivers, drills, grinders, sanders and polishers, cutting tools, and a whole lot more. Based on decades of expertise in providing the right tools, compressors or construction equipment for the toughest demands, CP understand the needs of the professionals for maintaining and repairing heavy equipment and machinery on-site or off-site.

Zampini Industrial Group is proud to be a premier online supplier of Chicago Pneumatic Tools, and our numerous years representing the CP brand has provided us with a wide range of valuable application experiences that we use to help you get the perfect CP tool for your job!
