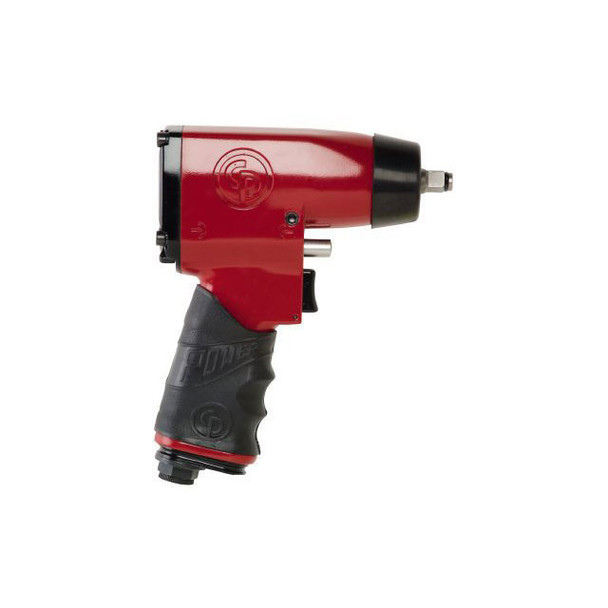

CP724 H Pistol Grip  3/8" Air Impact Wrench | 200 ft.lbs | by Chicago Pneumatic

Chicago Pneumatic

SKU:
8941007240
Availability:
Please Call For Pricing and Availability
Please Call For Pricing and Availability

Description

CP724 H - High torque in small package

Part number8941007240
ModelCP724 H
DiscontinuedDiscontinued
Handle typePistol
Square drive3/8"
Working Torque Range (fwd)54-230 Nm40-170
Working Torque Range (fwd)40-170 ft.lbs54-230
Maximum Torque (reverse)271 Nm200 ft.lbs
Maximum Torque (reverse)200 ft.lbs271 Nm
Free speed8500 rpm
Blows per minute1680
Net weight3.1 lb1.41 kg
Net weight1.41 kg3.1 lb
Power/weight ratio192.2 Nm/kg64.5 ft.lb/lb
Power/weight ratio64.5 ft.lb/lb192.2 Nm/kg
Length6"152 mm
Length152 mm6"
Average air consumption3 cfm
Average air consumption1.4 l/s3 cfm
Actual air consumption12 cfm
Actual air consumption5.7 l/s12 cfm
Air inlet thread size0.25 "
Min. hose size10 mm3/8"
Min. hose size3/8"10 mm
Noise level93 db(A)
Sound Power104 db(A)
Vibration (ISO-8662-7)<2,5 m/s²
Vibration α (ISO-28927-2)3.4 m/s²
Vibration K (ISO-28927-2)1.7 m/s²
Socket retainerFriction ring
Clutch typeDyna Pact„¢ Rocking dog - oil bath


Benefits

  • General Maintenance
  • Clutch delivers smooth and comfortable operation
  • Robust housing and oil bath clutch provide durability
  • Versatile tool ideal for all general repairs and maintenance applications
  • Features

  • 3/8" impact wrench for general maintenance with ring retainer
  • DYNA-PACT (Pin clutch) with oil bath
  • One-handed reverse button with 4 positive power settings
  • Compact and ergonomic with rubber grip
  • Through handle air exhaust and 360degree air inlet swivel


  • For more information on the CP724 H impact wrench please call Zampini Industrial Group at 1-800-353-4676 and we will be happy to assist you.

    Established in 1901, Chicago Pneumatic Tools offers hundreds of quality air tools designed for a wide range of maintenance and production applications: impact wrenches, ratchet wrenches, screwdrivers, drills, grinders, sanders and polishers, cutting tools, and a whole lot more. Based on decades of expertise in providing the right tools, compressors or construction equipment for the toughest demands, CP understand the needs of the professionals for maintaining and repairing heavy equipment and machinery on-site or off-site.

    Zampini Industrial Group is proud to be a premier online supplier of Chicago Pneumatic Tools, and our numerous years representing the CP brand has provided us with a wide range of valuable application experiences that we use to help you get the perfect CP tool for your job!
