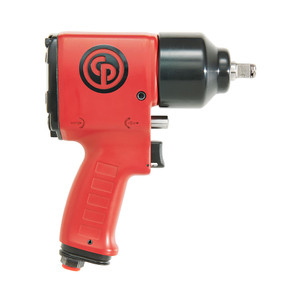

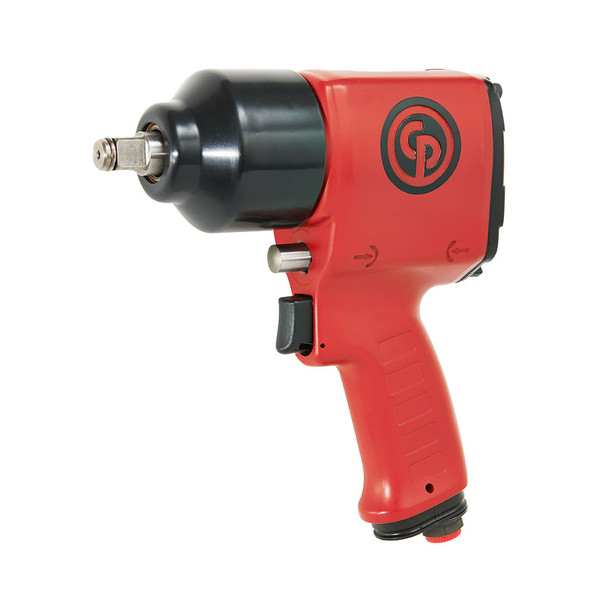

CP7620KIT Air Impact Wrench | 1/2" | 425 ft.lbs | 8941176200  | by Chicago Pneumatic

CP7620KIT - Compact & Durable

Part number	8941176200
Model	CP7620KIT
Handle type	Pistol
Square drive	1/2"
Working Torque Range (fwd)	34-420 Nm	25-310
Working Torque Range (fwd)	25-310 ft.lbs	34-420
Working Torque Range (reverse)	576 Nm	425 ft.lbs
Working Torque Range (reverse)	425 ft.lbs	576 Nm
Maximum Torque (reverse)	576 Nm	425 ft.lbs
Maximum Torque (reverse)	425 ft.lbs	576 Nm
Free speed	10000 rpm
Blows per minute	650
Net weight	5,1	2.33
Net weight	2.33 kg	5,1 lb
Power/weight ratio	247.2 Nm/kg	82.8 ft.lb/lb
Power/weight ratio	82.8 ft.lb/lb	247.2 Nm/kg
Length	7.1"	180 mm
Length	180 mm	7.1"
Side to center	33 mm	1.3"
Side to center	1.3"	33 mm
Average air consumption	4.2 cfm
Average air consumption	2 l/s	4.2 cfm
Actual air consumption	17.7 cfm
Actual air consumption	8.4 l/s	17.7 cfm
Air inlet thread size	0.25 "
Min. hose size	10 mm	3/8"
Min. hose size	3/8"	10 mm
Noise level	94 db(A)
Sound Power	105 db(A)
Vibration (ISO-8662-7)	3.4 m/s²
Vibration α (ISO-28927-2)	4.9 m/s²
Vibration K (ISO-28927-2)	2.5 m/s²
Socket retainer	Friction ring
Clutch type	Pin clutch
Box dimensions	224*215*76

Benefits

Compact

Durable

Rugged

Easy to operation

Operator comfort with smooth clutch mechanism and curved handle

A powerful yet economical tool ideal for general repair, transmission work, exhaust systems, and body shops

Features

Pin clutch mechanism in oil bath

One-handed push button forward/reverse with 2 power setting positions in both sides

Full power in reverse

Double teasing trigger

Curved handle

Aluminum body with composite cover

Through handle air exhaust and 360degree air inlet swivel

For more information on the CP7620KIT impact wrench please call Zampini Industrial Group at 1-800-353-4676 and we will be happy to assist you.
