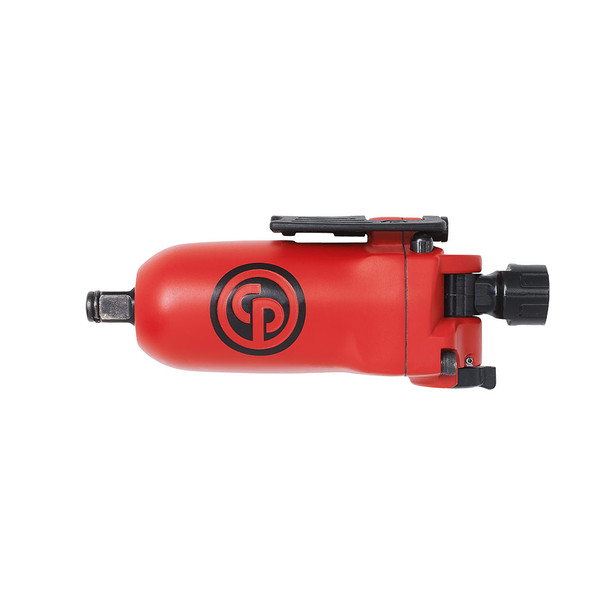

CP7711 Butterfly  1/4" Air Impact Wrench | 81 ft.lbs | by Chicago Pneumatic

CP7711 - 15% SMALLER than any other butterfly impacts - Compact & Lightweight

Part number	8941077110
Model	CP7711
Handle type	Butterfly
Square drive	1/4"
Working Torque Range (fwd)	9-80 Nm	6.6-59
Working Torque Range (fwd)	6.6-59 ft.lbs	9-80
Maximum Torque (reverse)	110 Nm	81 ft.lbs
Maximum Torque (reverse)	81 ft.lbs	110 Nm
Free speed	15000 rpm
Net weight	1.1 lb	0.53 kg
Net weight	0.53 kg	1.1 lb
Power/weight ratio	220 Nm/kg	73.6 ft.lb/lb
Power/weight ratio	73.6 ft.lb/lb	220 Nm/kg
Length	5 1/2"	140 mm
Length	140 mm	5 1/2"
Side to center	40 mm	1.6"
Side to center	1.6"	40 mm
Average air consumption	1 1/2 cfm
Average air consumption	0.7 l/s	1 1/2 cfm
Actual air consumption	6 cfm
Actual air consumption	2.9 l/s	6 cfm
Air inlet thread size	0.25 "
Min. hose size	10 mm	3/8"
Min. hose size	3/8"	10 mm
Noise level	92 db(A)
Sound Power	103 db(A)
Vibration α (ISO-28927-2)	4 m/s²
Vibration K (ISO-28927-2)	1 m/s²
Socket retainer	Friction ring
Clutch type	Rocking dog clutch

Benefits

15% SMALLER than any other butterfly impacts

Compact

Lightweight

Powerful

Easy operation

Durable

Features

5.5 in. / 140 mm length, provides easier access to hard to reach places

1.16 lbs. / 0.53 Kg

80 ft.lbs. / 110 Nm in reverse

Double rocking dog mechanism and Aluminum housing

Power regulator in the back: 3 positions on both sides

Butterfly shift for forward / reverse

Built-in 180degree air inlet swivel

Ideal tool for transmission and engine repair works, body panels, oil pans, ignitions, motor cycle repair and vehicle seats

For more information on the CP7711 impact wrench please call Zampini Industrial Group at 1-800-353-4676 and we will be happy to assist you.
