CP7748K Air Impact Wrench | 1/2" | 920ft.lbs | 8940172308 | by Chicago Pneumatic

Write a Review
SKU:
8940172308
Availability:
Please Call For Pricing and Availability
  • CP7748K Air Impact Wrench | 1/2" | 920 ft.lbs | 8940172308  | by Chicago Pneumatic available now at AirToolPro.com

Description

CP7748K - Durable, Powerful & Ergonomic + Modular and Convenient

Part number8940172308
ModelCP7748K
Handle typePistol
Square drive1/2"
Working Torque Range (fwd)102-786 Nm75-580
Working Torque Range (fwd)75-580 ft.lbs102-786
Maximum Torque (reverse)1250 Nm920 ft.lbs
Maximum Torque (reverse)920 ft.lbs1250 Nm
Free speed8200 rpm
Blows per minute1200
Net weight4.6 lb2 kg
Net weight2 kg4.6 lb
Power/weight ratio625 Nm/kg200.4 ft.lb/lb
Power/weight ratio200.4 ft.lb/lb625 Nm/kg
Length7.8"200 mm
Length200 mm7.8"
Side to center38 mm1 1/2"
Side to center1 1/2"38 mm
Average air consumption6.2 cfm
Average air consumption3 l/s6.2 cfm
Actual air consumption25 cfm
Actual air consumption12 l/s25 cfm
Air inlet thread size0.25 "
Min. hose size10 mm3/8"
Min. hose size3/8"10 mm
Noise level93 db(A)
Sound Power104 db(A)
Vibration α (ISO-28927-2)10.1 m/s²
Vibration K (ISO-28927-2)2.34 m/s²
Socket retainerFriction ring
Clutch typeTwin Hammer


Benefits

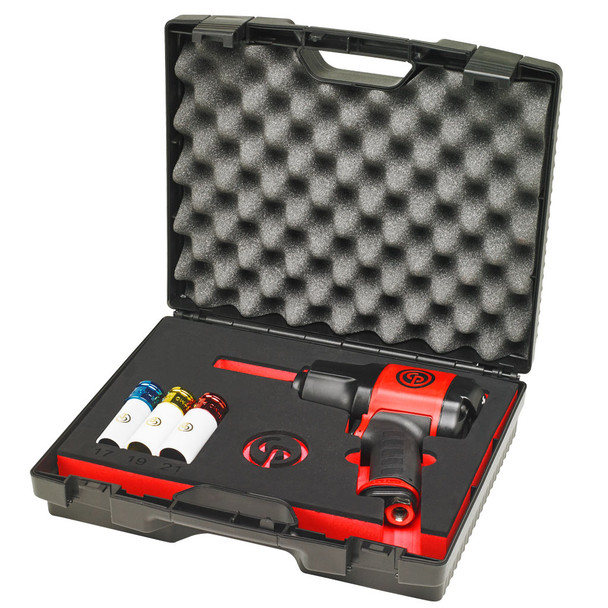

  • Can be transportable as a tool box
  • Removable foam insert to be placed in a rolling cabinet drawer
  • High quality composite case supplied a bi-material handle and composite latches
  • Most powerful tool on the market in its class: 922 ft.lbs / 1250 Nm of maximum real torque in reverse
  • Best price to performance/durability ratio
  • Lightweight due to composite housing
  • Contoured comfort grip handle instead of TPR injected in handle
  • Smooth Forward / Reverse Switch on back
  • Suited for all maintenance applications: Light vehicle tire changing, General maintenance on vehicles and MRO applications
  • Features

  • 3 Wheel Sockets included / 17 / 19 and 21 mm
  • 80 mm length, with anti-scratch protection, extra thin-walled for alloy rims, painted rims and polished cap nuts
  • High quality composite case supplied a bi-material handle and composite latches
  • 1/2" composite impact wrench
  • One handed forward/reverse
  • Full power in reverse: 922 ft. lb - 1250 Nm maximum real torque in reverse
  • 3 positions in forward: Low - 180 ft-lbs. / 245 Nm - Medium - 480 ft-lbs. / 650 Nm - High - 730 ft-lbs. / 990 Nm
  • Aluminum clutch and back housing
  • Friction ring socket retainer
  • Full teasing trigger
  • Curved to be more ergonomic, Smaller diameter to fit better in hand palm and to be optimum balanced
  • Handle with Thermo-Plastic Rubber injected in housing for a durable and comfortable grip; Resistant to most chemicals used in workshops
  • Twin hammer mechanism
  • 360degree swivel air inlet
  • Composite housing


  • For more information on the CP7748K impact wrench please call Zampini Industrial Group at 1-800-353-4676 and we will be happy to assist you.
