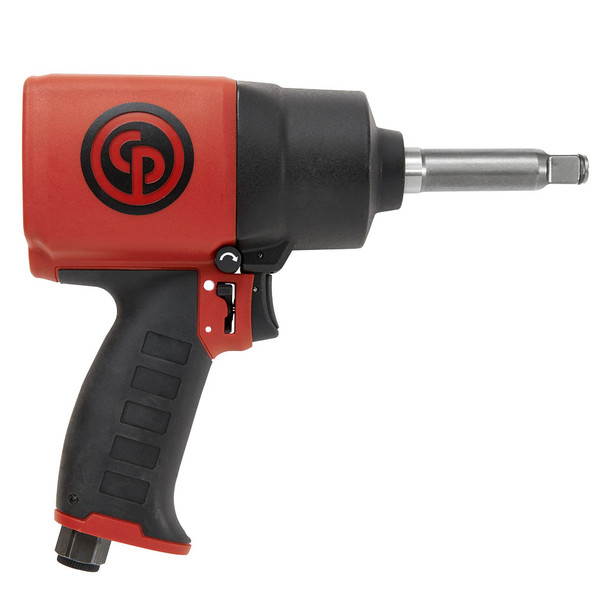

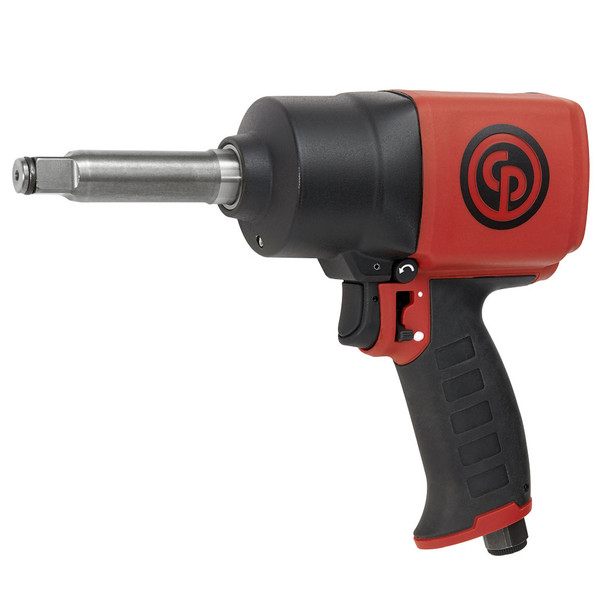

CP7749-2 Air Impact Wrench | 1/2" | 955 ft.lbs | 8941077493  | by Chicago Pneumatic

CP7749-2 - Powerful & lightweight

Part number	8941077493
Model	CP7749-2
Handle type	Pistol
Square drive	1/2"
Working Torque Range (fwd)	135-704 Nm	100-520
Working Torque Range (fwd)	100-520 ft.lbs	135-704
Maximum Torque (reverse)	1300 Nm	955 ft.lbs
Maximum Torque (reverse)	955 ft.lbs	1300 Nm
Free speed	7000 rpm
Net weight	4,6	2
Net weight	2 kg	4,6 lb
Power/weight ratio	650 Nm/kg	209.8 ft.lb/lb
Power/weight ratio	209.8 ft.lb/lb	650 Nm/kg
Length	8.7"	221 mm
Length	221 mm	8.7"
Side to center	36 mm	1.4"
Side to center	1.4"	36 mm
Average air consumption	6.2 cfm
Average air consumption	3 l/s	6.2 cfm
Actual air consumption	25 cfm
Actual air consumption	12 l/s	25 cfm
Air inlet thread size	0.25 "
Min. hose size	10 mm	3/8"
Min. hose size	3/8"	10 mm
Noise level	95 db(A)
Sound Power	106 db(A)
Vibration α (ISO-28927-2)	10.9 m/s²
Vibration K (ISO-28927-2)	2.7 m/s²
Socket retainer	Friction ring
Clutch type	Twin hammer
Box dimensions	254x210x83	10x8.3x3.3
Box dimensions	10x8.3x3.3	254x210x83
Over carton	267x221x430	10.5x8.7x16.9
Over carton	10.5x8.7x16.9	267x221x430

Benefits

Extreme torque

Compact

Lightweight

Easy to handle an to operation

Comfort

Durable

Features

955 ft.lbs - 1300 Nm maximum real torque in reverse

3.95 lbs - 1.8 Kg

6.7 in - 171 mm length

Aluminum alloy front housing

Composite housing

Curved handle with Thermo-Plastic Rubber injected in housing for a durable and comfortable grip. Resistant to most chemicals used in workshops.

NEW power setting system : 1 hand-operation behind the trigger

2 positions in reverse: max and lower torque

2 position in forward: max and low torque

Side-to-Side

Bi-material 2 stage trigger / soft grip

Twin hammer mechanism

360degree swivel air inlet

For more information on the CP7749-2 impact wrench please call Zampini Industrial Group at 1-800-353-4676 and we will be happy to assist you.
