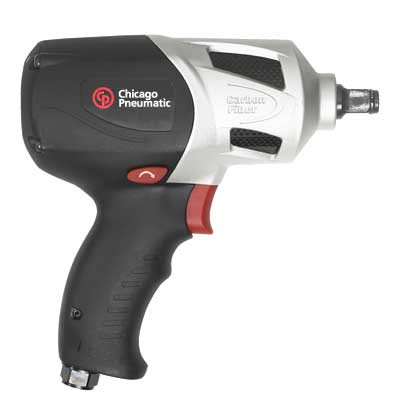

CP7759Q Air Impact Wrench | 1/2" | 780 ft.lbs | 8941077518  | by Chicago Pneumatic

CP7759Q - Comfort & power

Part number	8941077518
Model	CP7759Q
Discontinued	Discontinued
Handle type	Pistol
Square drive	1/2"
Working Torque Range (fwd)	100-630 Nm	75-460
Working Torque Range (fwd)	75-460 ft.lbs	100-630
Maximum Torque (reverse)	1054 Nm	780 ft.lbs
Maximum Torque (reverse)	780 ft.lbs	1054 Nm
Free speed	8000 rpm
Blows per minute	1200
Net weight	3.74 lb	1.74 kg
Net weight	1.74 kg	3.74 lb
Power/weight ratio	605.7 Nm/kg	208.6 ft.lb/lb
Power/weight ratio	208.6 ft.lb/lb	605.7 Nm/kg
Length	7.4"	187 mm
Length	187 mm	7.4"
Average air consumption	4.8 cfm
Average air consumption	2.2 l/s	4.8 cfm
Actual air consumption	23 cfm
Actual air consumption	11 l/s	23 cfm
Free speed air consumption	5.29 cfm
Free speed air consumption	2.5 l/s	5.29 cfm
Air inlet thread size	0.25 "
Min. hose size	10 mm	3/8"
Min. hose size	3/8"	10 mm
Noise level	93.2 db(A)
Sound Power	104.4 db(A)
Vibration α (ISO-28927-2)	8.1 m/s²
Vibration K (ISO-28927-2)	1.7 m/s²
Socket retainer	Friction ring
Clutch type	Twin hammer
Box dimensions	210*220*82	8,27*8,67*3,2
Box dimensions	8,27*8,67*3,2	210*220*82
Over carton	670*245*130	26,38*9,65*5,12
Over carton	26,38*9,65*5,12	670*245*130

Benefits

No longer for sale

New technology optimizing power-to-weight ratio for General Maintenance applications

Maximize operator comfort thanks to Unique CP Handle design

Side-2-side: the Most convenient reverse technology in the market

Features

1/2" composite and carbon fiber impact wrench

Rugged technology with carbon fiber inlay

Lightweight with a magnesium clutch housing and composite handle

S2S easy forward reverse: Side to Side patented technology

780 ft.lbs (1,054Nm) of maximum torque in reverse

Full teasing trigger

Integrated muffler for low noise

Flexible 360degree swivel air inlet

For more information on the CP7759Q impact wrench please call Zampini Industrial Group at 1-800-353-4676 and we will be happy to assist you.
