Description

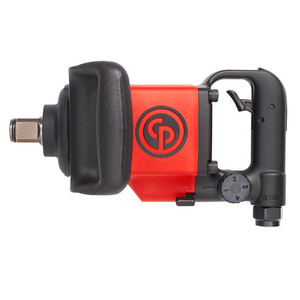

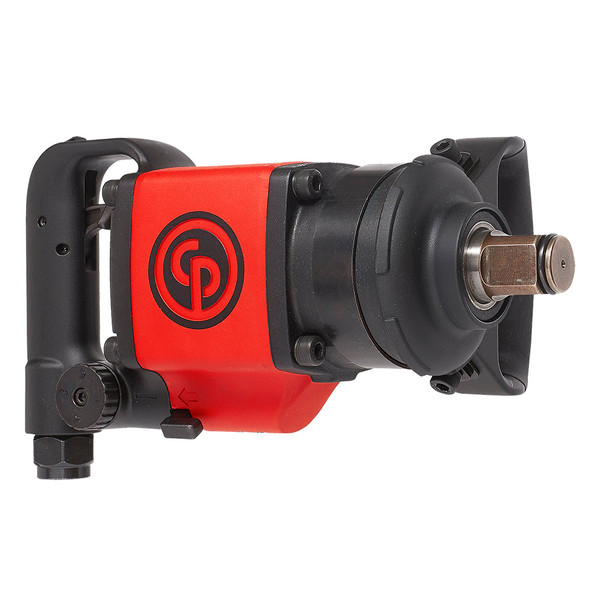

CP7773D Chicago Pneumatic 1" Air Impact Wrench - Lightweight, Powerful, Easy to use
| Part number | 8941077731 | |
| Model | CP7773D | |
| Handle type | D-Handle Inside Trigger | |
| Square drive | 1" | |
| Working Torque Range (fwd) | 250-1070 ft.lbs | 340-1450 |
| Maximum Torque (reverse) | 1300 ft.lbs | 1760 Nm |
| Free speed | 6600 rpm | |
| Net weight | 14.5 lb | 6.6 kg |
| Length | 11.4" | 290 mm |
| Side to center | 1.8" | 45 mm |
| Actual air consumption | 41 cfm | |
| Air inlet thread size | 0.5 " | |
| Min. hose size | 3/8" | 13 mm |
| Noise level | 98 db(A) | |
| Sound Power | 109 db(A) | |
| Vibration α (ISO-28927-2) | 12 m/s² | |
| Vibration K (ISO-28927-2) | 3.3 m/s² | |
| Socket retainer | Friction ring | |
| Clutch type | Twin hammer | |
| Box dimensions | 12,8*7,5*5,1 | 325*190*130 |
| Over carton | 13,8*8,3*11,4 | 350*210*290 |
Benefits
- Great Performance
- Lightweight
- Comfort
- Easy to Use
- Rugged and Robust
- Easy Operation
Features
- 14.5 lbs. / 6.6 kg
- 1300 ft.lbs. / 1760 Nm in reverse
- Twin hammer mechanism
- Steel motor
- Intuitive Forward / Reverse lever and power regulator on both sides
- 4 position power settings on both sides
- Side handle with soft touch grip
- Down exhaust
- Aluminum housing
- Composite cover on the clutch housing
- Socket retainer ring
For more information on the CP7773D impact wrench please call Zampini Industrial Group at 1-800-353-4676 and we will be happy to assist you.
Established in 1901, Chicago Pneumatic Tools offers hundreds of quality air tools designed for a wide range of maintenance and production applications: impact wrenches, ratchet wrenches, screwdrivers, drills, grinders, sanders and polishers, cutting tools, and a whole lot more. Based on decades of expertise in providing the right tools, compressors or construction equipment for the toughest demands, CP understand the needs of the professionals for maintaining and repairing heavy equipment and machinery on-site or off-site.
Zampini Industrial Group is proud to be a premier online supplier of Chicago Pneumatic Tools, and our numerous years representing the CP brand has provided us with a wide range of valuable application experiences that we use to help you get the perfect CP tool for your job!
