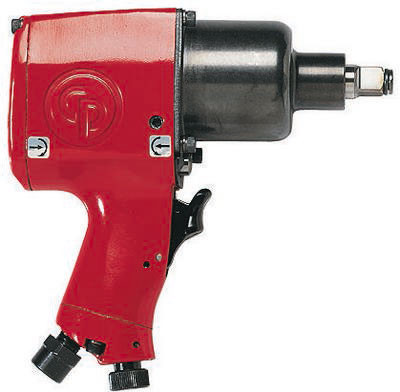

CP9542 Air Impact Wrench | 1/2" | 450 ft.lbs | 6151909542  | by Chicago Pneumatic

CP9542 - The industrial grade of the "Classic" with Pin socket retainer

Part number	6151909542
Model	CP9542
Handle type	Pistol
Square drive	1/2"
Working Torque Range (fwd)	34-434 Nm	25-320
Working Torque Range (fwd)	25-320 ft.lbs	34-434
Maximum Torque (reverse)	610 Nm	450 ft.lbs
Maximum Torque (reverse)	450 ft.lbs	610 Nm
Free speed	8900 rpm
Blows per minute	1100
Net weight	5 1/2 lb	2 1/2 kg
Net weight	2.5 kg	5 1/2 lb
Power/weight ratio	244 Nm/kg	81.8 ft.lb/lb
Power/weight ratio	81.8 ft.lb/lb	244 Nm/kg
Length	6.6"	168 mm
Length	168 mm	6.6"
Side to center	30 mm	1.18"
Side to center	1.18"	30 mm
Actual air consumption	13 cfm
Actual air consumption	6.13 l/s	13 cfm
Air inlet thread size	0.25 "
Noise level	89 db(A)
Sound Power	100 db(A)
Vibration (ISO-8662-7)	2.7 m/s²
Vibration α (ISO-28927-2)	5.5 m/s²
Vibration K (ISO-28927-2)	2.5 m/s²
Socket retainer	Pin
Clutch type	Pin clutch

Benefits

Industrial Maintenance and Production

Best industrial 1/2" impact for Hard joints applications

Operator comfort due to low vibrations and low noise level

Good control thanks to the multi-position regulator

Reliable pin clutch in oil bath and durable housing

Compact 3-part construction and easy to maintain

Features

1/2" impact wrench with pin socket retainer

Fast and reliable Pin clutch with oil bath

Aluminum body and steel clutch housing

Torque regulator at the handle

Steel Trigger for harsh environment
