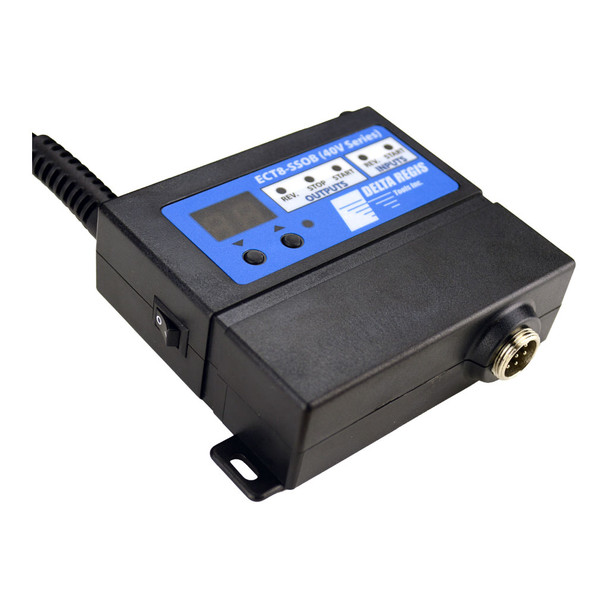

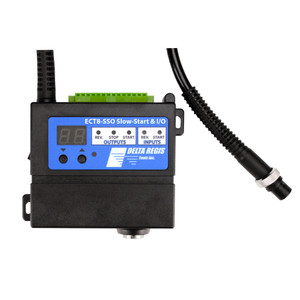

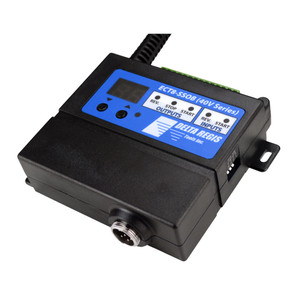

Speed Hi/Lo: | 30~100% of full speed | Input: | Dry switch contact | Output: | MOS relay, max. 40VDC, 250mA | Dimensions: | 103x100x32 mm | Weight: | 180 g | | The ECT8-SSO Slow Start & I/O Module is ideal for processes that require more functionality than is provided by the CESL8 Series screwdriver's standard hi/lo speed controller. The module installs in-line between the controller and the tool. It has a short (400mm) whip cable which plugs into the controller, and a 6 pin connector to accept the screwdriver cable. An LED display is provided for set-up and error indication. Status lights show the condition of various I/O functions. The rear-mounted terminal strip is the interface point for external signal input and output communication. - For use with the following CESL8 Series model screwdrivers:
CESL810-812, 823-827(P/F/PF) - For use with the following controller models:
BECT620C/BECT820 | |
