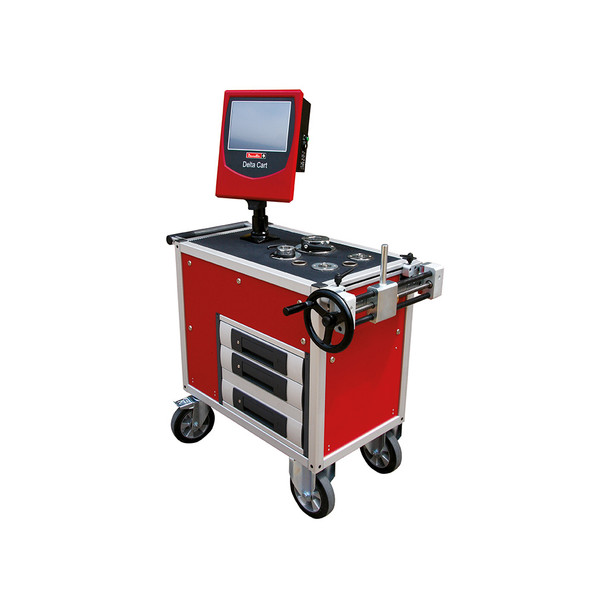

Desoutter DC23C250 DELTA CART 2 - Organize / Check / Report all assembly tools in the plant with their capability status.

Desoutter DC23C250 DELTA CART 2 - Organize / Check / Report all assembly tools in the plant with their capability status.

Part number	DC23C250
Model	DELTA CART 2
Torque range	up to 10 / 50 & 250 Nm	up to 7.4 / 36.9 & 184
Torque range	up to 7.4 / 36.9 & 184 ft.lbs	up to 10 / 50 & 250

Benefits

Make an inventory of Psets and Tools. Bind Mean of Control and Mean of Production for generated Machine Capability Tests Reports.

Organize and follow routes from station to station, with users access rights management.

Measure 3 tightenings and carry SPC or make a tool adjustment based on a defined number of measurements. Generate a certificate if OK or a report if NOK

Decide whether tools is good to go or requires an adjustment / repair or replacement.

Store results of tests in a local database to prove that the necessary audits of the line were conducted.

Features

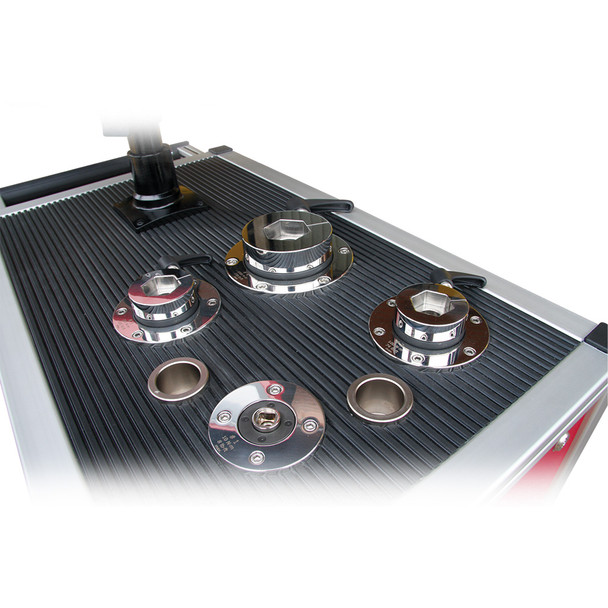

Configurable torque range from 1 Nm to 1000Nm with up to 4 cells. Torque reaction bars, joint simulators and accessories included

External Rotary Transducers DRT5 can be added for in-line calibration (Angle Strategy). Auto Calibration CVI2 & CVI3.

Manual or automatic (via Open Protocol) double reading bench / controller with automatic verification of a drift.

Overview of your tools inventory with a calibration status. Planning of next calibrations.

PST High accuracy static transducers with locking system specially designed for pulse tool calibration. ISO RIG System for click wrenches calibrations

Desoutter Industrial Tools are some of the finest tools available for production and manufacturing tool applications. AirToolPro.com by Zampini Industrial Group is a premier distributor of Desoutter Air and Electric Tools, and has been a trusted Desoutter Partner since 1987! From precision torque screwdrivers to DC Electric systems to proven high performance air grinders, Desoutter has you covered. Desoutter tools have best in class performance, fit, and finish, and they are designed to achieve the impressive goals below as thoroughly as possible:

- Good Balance	- Minimize Vibration
- Low Weight	- Minimize Exhaust Air Jet
- Minimize Torque Reaction	- Maximize Power To Weight Ratio
- Thermal Insulation	- Minimize Oil From Exhaust
- Minimize Torque Impulse	- Appropriate Size
- Minimize Necessary Trigger Loading	- Excellent Grip
