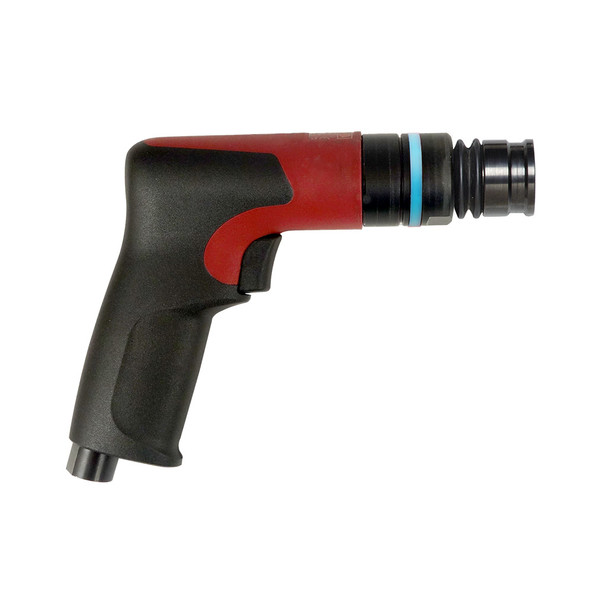

DR500-P1000-QR - Quick Release Drill Motor by Desoutter


  • DR500-P1000-QR - Quick Release Drill Motor by Desoutter
  • DR500-P1000-QR - Quick Release Drill Motor by Desoutter
Please Call For Pricing and Availability
Please Call For Pricing and Availability


DR500-P1000-QR - Quick Release Drill Motor by Desoutter

Part number6151761850
Free speed1000 rpm
Power500 W0.68 hp
Power0.68 hp500 W
Stall torque18 Nm13.3 ft.lbs
Stall torque13.3 ft.lbs18 Nm
Handle typePistol
OperationTrigger start
Net weight0.66 kg1.45 lb
Net weight1.45 lb0.66 kg
Length188 mm7.4"
Length7.4"188 mm
Actual air consumption14 l/s30 cfm
Actual air consumption30 cfm
Air inlet thread size1/4 "
Air inlet thread size0.25 BSP
Min. hose size6 mm1/4"
Min. hose size1/4"6 mm
Sound pressure77 db(A)
Vibration (ISO-8662-6)<2,5 m/s²


  • Fast & easy head change with
  • ergonomic Quick release system
  • Durability (Long Life Bearings)
  • High Stall Torque (5 Blades Motor)
  • No Hand Stress (Ergonomic Grip)
  • Reliability (High Quality Gears)
  • Accuracy (Progressive Trigger)
  • Low Noise (Efficient Silencer)
  • Durability (Long Life Bearings)
  • Easy maintenance
  • Color ring for speed identification
  • Button start
  • Rear Bumper for reduced sound levels, air flow orientation & aircraft protection

  • Desoutter Air and Electric Industrial Tools Banner

    Desoutter Industrial Tools are some of the finest tools available for production and manufacturing tool applications. AirToolPro.com by Zampini Industrial Group is a premier distributor of Desoutter Air and Electric Tools, and has been a trusted Desoutter Partner since 1987! From precision torque screwdrivers to DC Electric systems to proven high performance air grinders, Desoutter has you covered. Desoutter tools have best in class performance, fit, and finish, and they are designed to achieve the impressive goals below as thoroughly as possible:

    - Good Balance - Minimize Vibration
    - Low Weight - Minimize Exhaust Air Jet
    - Minimize Torque Reaction - Maximize Power To Weight Ratio
    - Thermal Insulation - Minimize Oil From Exhaust
    - Minimize Torque Impulse - Appropriate Size
    - Minimize Necessary Trigger Loading - Excellent Grip
