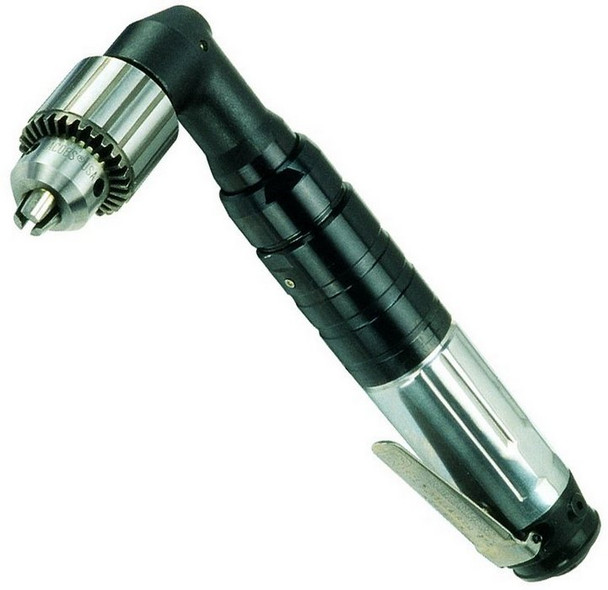

Ingersoll Rand 7LM3A43 SMALL ANGLE DRILL - 900

Ingersoll Rand

Please Call For Pricing and Availability
Please Call For Pricing and Availability


Model 7LM3A43
Height of Head (in) 3.91
Chuck Capacity in. 3/8
Free Speed rpm 900
Height of Head (mm) 99
Stall Torque Nm 19.2
Stall Torque in.-lb. 170
Weight with Chuck kg 1.79
Side to Center Distance mm 18
cfm 26
Side to Center Distance in. 11/16
Chuck Capacity mm 10
Length with Chuck in. 11.06
Length with Chuck mm 281
Weight with Chuck lb. 4.00

Proven Quality and ReliabilityThe popular 7 Series Angle Drills deliver results day after day. And excellent power-to-weight ratio gets the job done with less fatigue. Available with Aerospace Heads (A1models) or standard chucks.

  • Modular design allows maximum parts interchangeability and easy, low coast maintenance
  • Infinitely variable speed allows slow speed starting and high speed drilling
  • Angle head may be rotated 360 degree to allow ideal orientation with the throttle
  • Ergonomically designed housing provides a secure surface for operator grip

For more information on the Ingersoll Rand 7LM3A43 please call AirToolPro / Zampini Industrial Group at 1-800-353-4676
To view our complete selection of air and electric drills, click here to return to Drills and Tappers - Home.
CCN Number 1196286
